SKU: NK32/20TN-MB

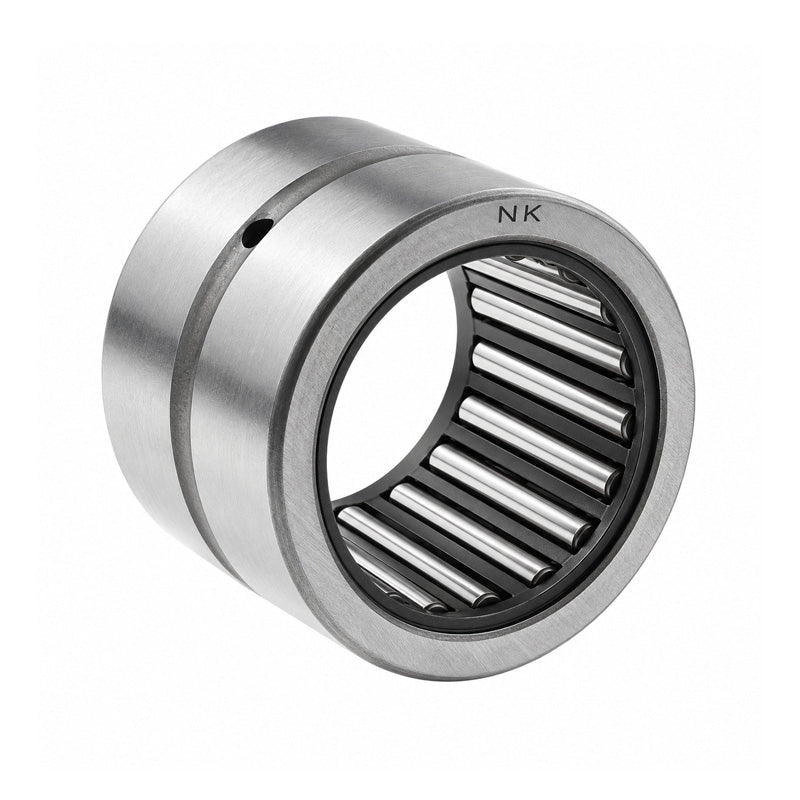

Major Brand NK32/20TN Needle Roller Bearing With Flanges without Shaft Sleeve 32x42x20mm
Major Brand NK32/20TN Needle Roller Bearing With Flanges without Shaft Sleeve 32x42x20mm
Regular price
€19,67
ex VAT
Regular price
Sale price
€19,67
ex VAT
In stock
Price Break
10+
€14,98
19+
€14,14
29+
€13,97
39+
€13,80
49+
€13,63
74+
€13,46
99+
€12,62
199+
€12,45
249+
€12,29
499+
€12,12
999+
€11,78
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 32mm
- Outside Diameter:
- 42mm
- Width:
- 20mm
Technical
Technical
| Fw | 32mm |
|---|---|
| D | 42mm |
| C | 20mm |
| Dynamic load | 23300 N |
| Static load | 40500 N |
| Fatigue load limit Pu | 5200 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| r1r2 | 0.3mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Seal | G/SD32x42x4 |
| Weight | 68 g |
