SKU: NK26/16-MB

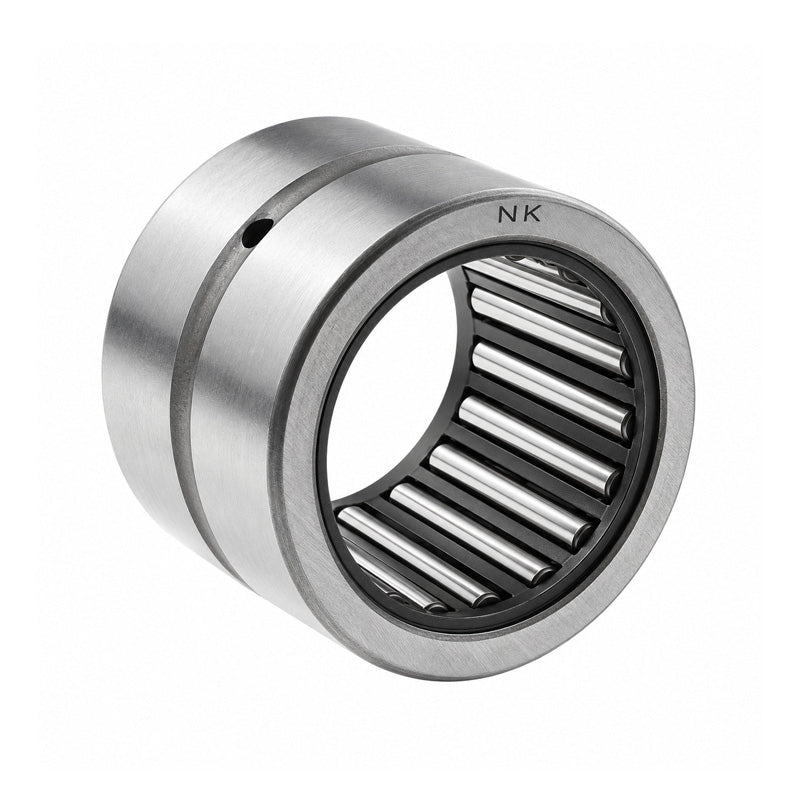

Major Brand NK26/16 Needle Roller Bearing With Flanges without Shaft Sleeve 26x34x16mm
Major Brand NK26/16 Needle Roller Bearing With Flanges without Shaft Sleeve 26x34x16mm
Regular price
€10,34
ex VAT
Regular price
Sale price
€10,34
ex VAT
In stock
Price Break
10+
€7,88
19+
€7,43
29+
€7,35
39+
€7,26
49+
€7,17
74+
€7,08
99+
€6,64
199+
€6,55
249+
€6,46
499+
€6,37
999+
€6,20
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 26mm
- Outside Diameter:
- 34mm
- Width:
- 16mm
Technical
Technical
| Fw | 26mm |
|---|---|
| D | 34mm |
| C | 16mm |
| Dynamic load | 15700 N |
| Static load | 26000 N |
| Fatigue load limit Pu | 3200 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| r1r2 | 0.3mm |
| Da max | 32mm |
| ra max | 0.3mm |
| Seal | G/SD26x34x4 |
| Weight | 34 g |
