SKU: NK25/20-MB

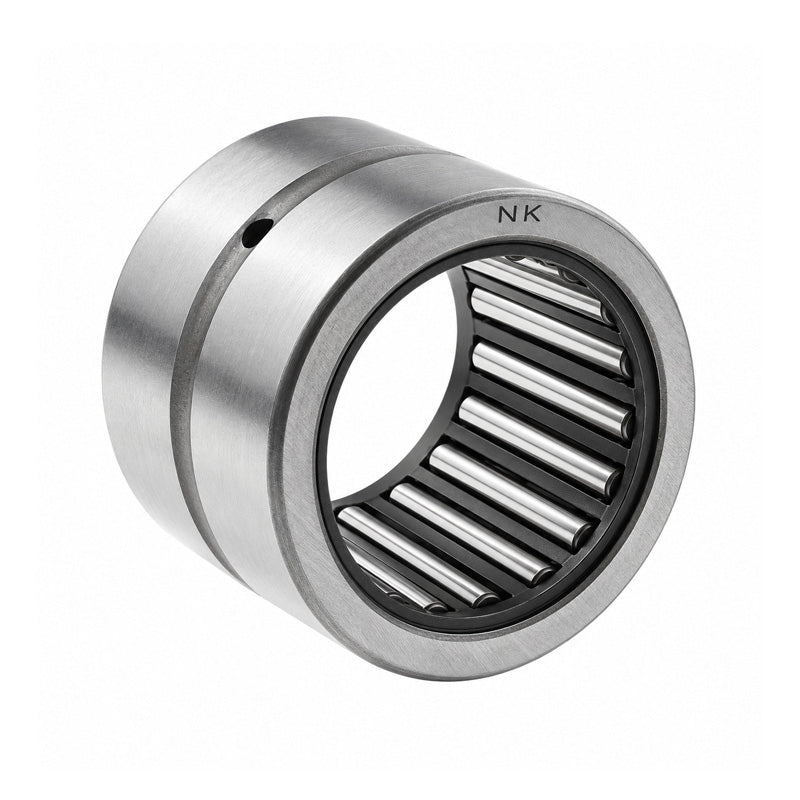

Major Brand NK25/20 Needle Roller Bearing With Flanges without Shaft Sleeve 25x33x20mm
Major Brand NK25/20 Needle Roller Bearing With Flanges without Shaft Sleeve 25x33x20mm
Regular price
€18,43
ex VAT
Regular price
Sale price
€18,43
ex VAT
In stock
Price Break
10+
€16,40
19+
€15,48
29+
€15,30
39+
€15,11
49+
€14,93
74+
€14,74
99+
€13,82
199+
€13,64
249+
€13,45
499+
€13,27
999+
€12,90
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 33mm
- Width:
- 20mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 33mm |
| C | 20mm |
| Dynamic load | 19000 N |
| Static load | 32500 N |
| Fatigue load limit Pu | 4150 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| r1r2 | 0.3mm |
| Da max | 31mm |
| ra max | 0.3mm |
| Seal | G/SD25x33x4 |
| Weight | 42 g |
