SKU: NK21/20-MB

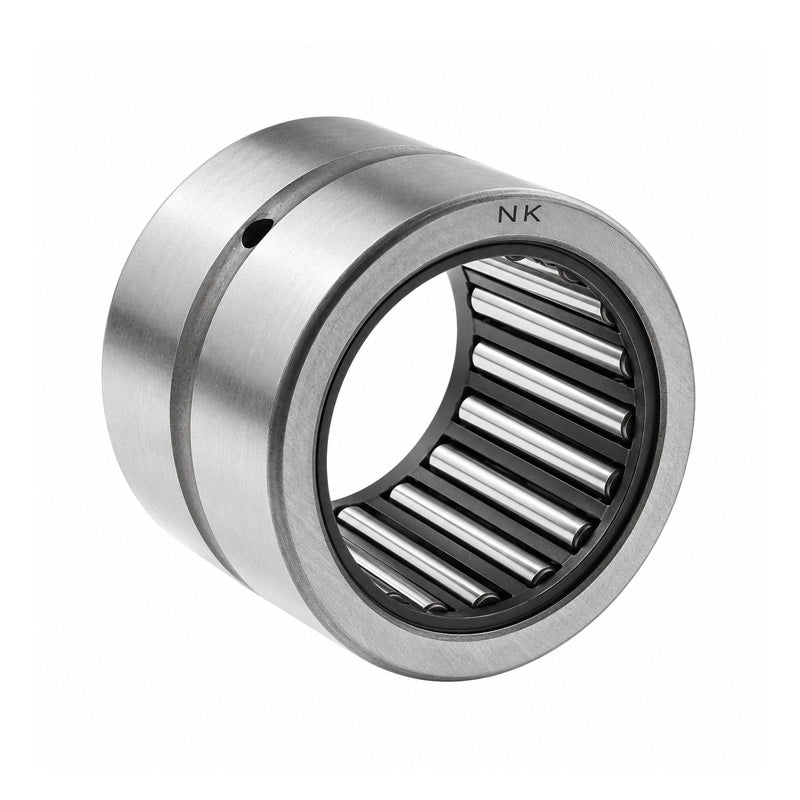

Major Brand NK21/20 Needle Roller Bearing With Flanges without Shaft Sleeve 21x29x20mm
Major Brand NK21/20 Needle Roller Bearing With Flanges without Shaft Sleeve 21x29x20mm
Regular price
€23,15
ex VAT
Regular price
Sale price
€23,15
ex VAT
In stock
Price Break
10+
€17,63
19+
€16,64
29+
€16,44
39+
€16,24
49+
€16,05
74+
€15,85
99+
€14,86
199+
€14,66
249+
€14,46
499+
€14,26
999+
€13,87
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 21mm
- Outside Diameter:
- 29mm
- Width:
- 20mm
Technical
Technical
| Fw | 21mm |
|---|---|
| D | 29mm |
| C | 20mm |
| Dynamic load | 17200 N |
| Static load | 27000 N |
| Fatigue load limit Pu | 3450 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| r1r2 | 0.3mm |
| Da max | 27mm |
| ra max | 0.3mm |
| Seal | G21x29x4 |
| Weight | 35 g |
