SKU: NK18/20-MB

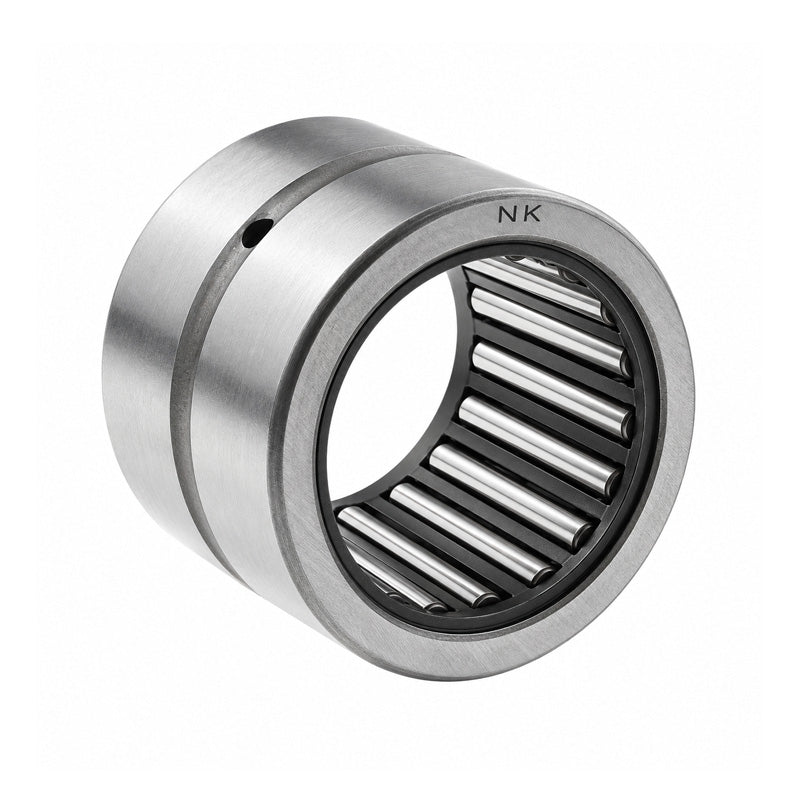

Major Brand NK18/20 Needle Roller Bearing With Flanges without Shaft Sleeve 18x26x20mm
Major Brand NK18/20 Needle Roller Bearing With Flanges without Shaft Sleeve 18x26x20mm
Regular price
€10,26
ex VAT
Regular price
Sale price
€10,26
ex VAT
In stock
Price Break
10+
€7,81
19+
€7,38
29+
€7,29
39+
€7,20
49+
€7,11
74+
€7,02
99+
€6,59
199+
€6,50
249+
€6,41
499+
€6,32
999+
€6,15
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 26mm
- Width:
- 20mm
Technical
Technical
| Fw | 18mm |
|---|---|
| D | 26mm |
| C | 20mm |
| Dynamic load | 16100 N |
| Static load | 23600 N |
| Fatigue load limit Pu | 3000 N |
| Speed in grease | 15000 rpm |
| Speed in oil | 22000 rpm |
| r1r2 | 0.3mm |
| Da max | 24mm |
| ra max | 0.3mm |
| Seal | G/SD18x26x4 |
| Weight | 31 g |
