SKU: NK16/16-MB

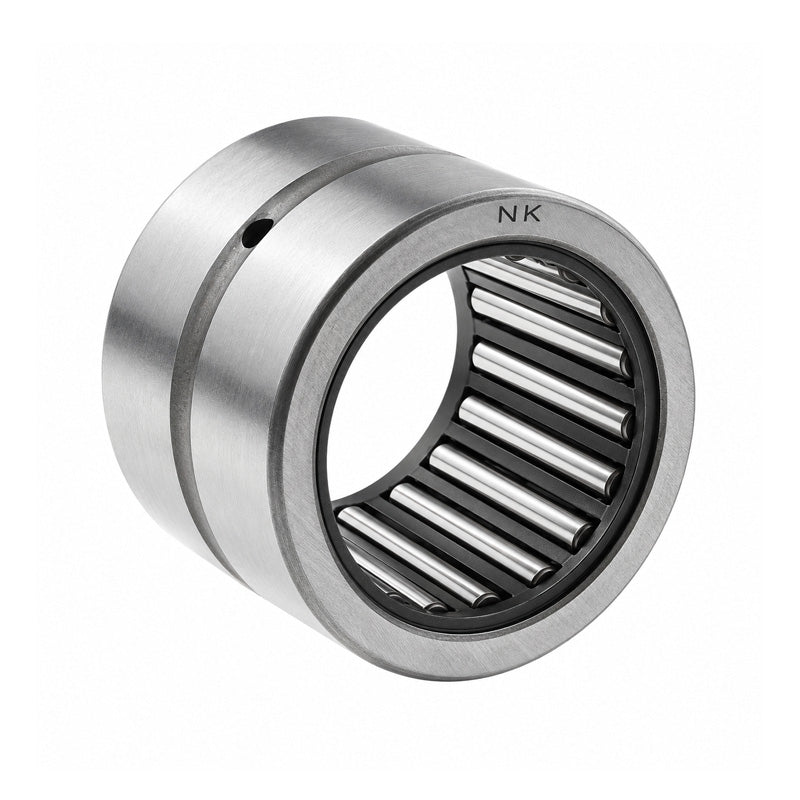

Major Brand NK16/16 Needle Roller Bearing With Flanges without Shaft Sleeve 16x24x16mm
Major Brand NK16/16 Needle Roller Bearing With Flanges without Shaft Sleeve 16x24x16mm
Regular price
€12,38
ex VAT
Regular price
Sale price
€12,38
ex VAT
In stock
Price Break
10+
€11,02
19+
€10,40
29+
€10,28
39+
€10,15
49+
€10,03
74+
€9,90
99+
€9,29
199+
€9,16
249+
€9,04
499+
€8,91
999+
€8,67
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 24mm
- Width:
- 16mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 24mm |
| C | 16mm |
| Dynamic load | 11700 N |
| Static load | 15300 N |
| Fatigue load limit Pu | 1860 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| r1r2 | 0.3mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Seal | G/SD16x24x3 |
| Weight | 22 g |
