SKU: NK15/20-MB

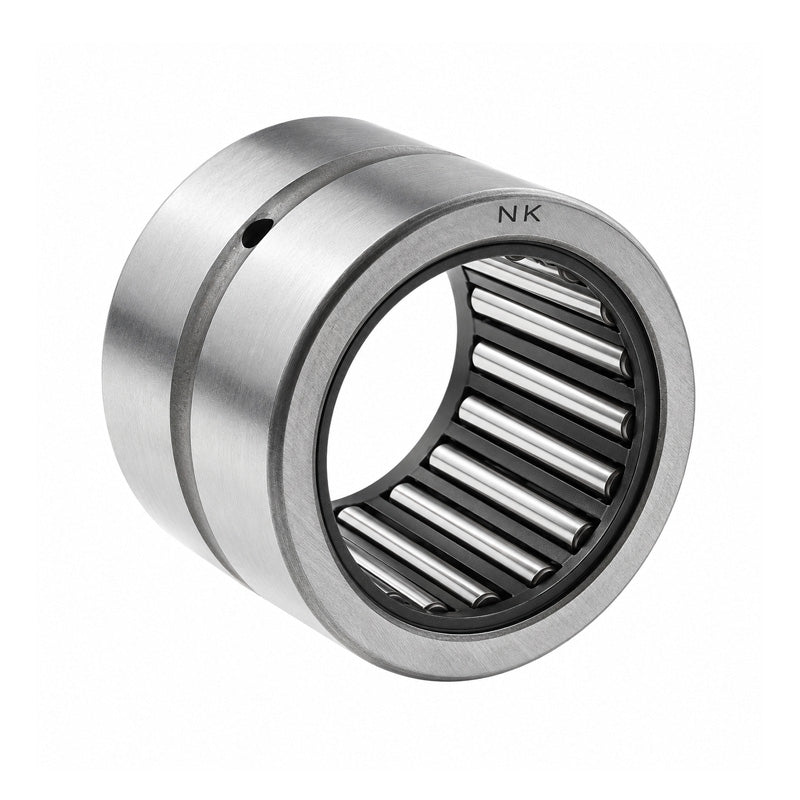

Major Brand NK15/20 Needle Roller Bearing With Flanges without Shaft Sleeve 15x23x20mm
Major Brand NK15/20 Needle Roller Bearing With Flanges without Shaft Sleeve 15x23x20mm
Regular price
€19,24
ex VAT
Regular price
Sale price
€19,24
ex VAT
In stock
Price Break
10+
€14,65
19+
€13,83
29+
€13,66
39+
€13,50
49+
€13,34
74+
€13,17
99+
€12,35
199+
€12,18
249+
€12,02
499+
€11,85
999+
€11,52
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 23mm
- Width:
- 20mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 23mm |
| C | 20mm |
| Dynamic load | 13800 N |
| Static load | 18300 N |
| Fatigue load limit Pu | 2280 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| r1r2 | 0.3mm |
| Da max | 21mm |
| ra max | 0.3mm |
| Seal | G/SD15x23x3 |
| Weight | 27 g |
