SKU: NK14/20R-NTN

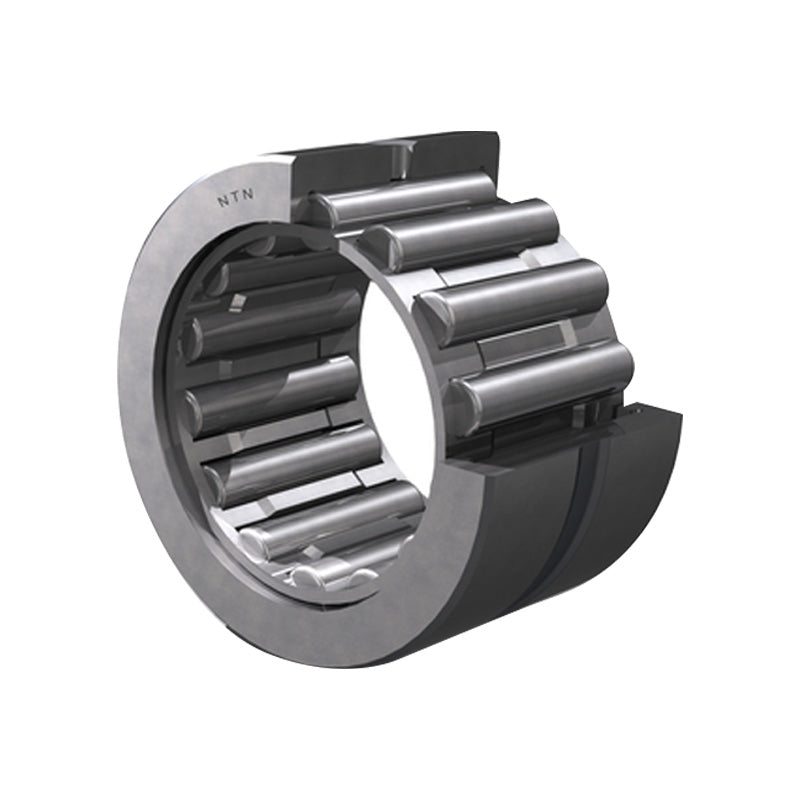

NTN NK14/20R Machined Needle Roller Bearing no Shaft Sleeve 14x22x20mm

NTN NK14/20R Machined Needle Roller Bearing no Shaft Sleeve 14x22x20mm
Regular price €11,98 ex VAT
Regular price Sale price €11,98 ex VAT
Sale Sold out

In stock

Price Break
3+ €9,12
4+ €8,61
9+ €8,51
19+ €8,41
49+ €8,30
99+ €8,20
499+ €7,69
999+ €7,59
1999+ €7,48
2999+ €7,38
4999+ €7,18
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 14mm
D - Outside diameter 22mm
C - Width of bearing, drawn cup or outer ring 20mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 13 kN
C0r - Static load rating 15.6 kN
N - Grease lubrication limit speed 16000 tr/min
N - Oil lubrication limit speed 24000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 20mm
ras max - Maximum shaft & housing fillet radius 0.3mm
