SKU: NK14/20R+1R10X14X20-NTN

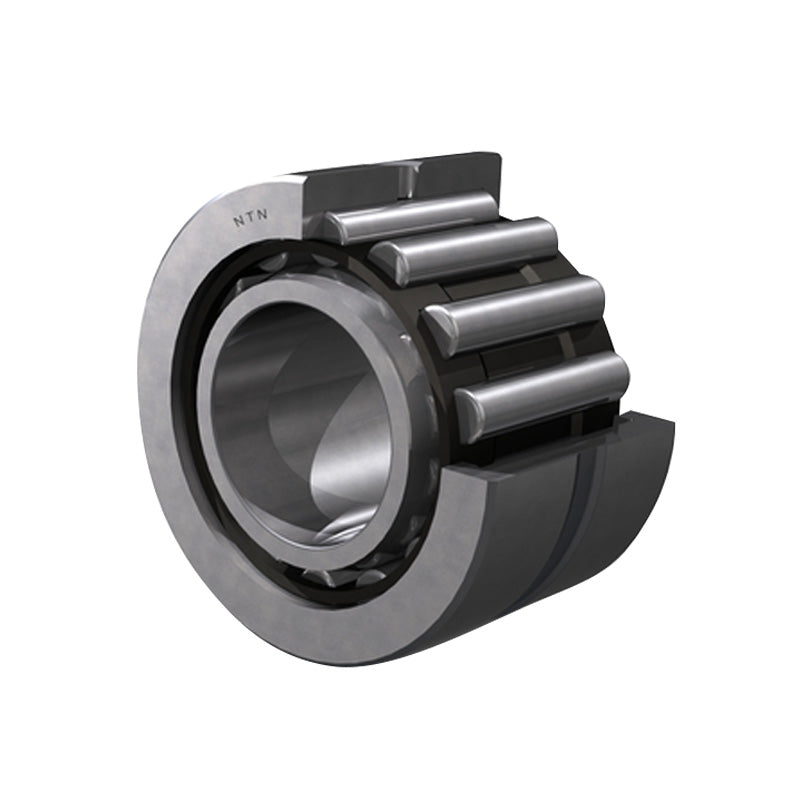

NTN NK14/20R-1R10X14X20 Machined Needle Roller Bearing with Shaft Sleeve 10x22x20mm - Allow 2-3 Days

NTN NK14/20R-1R10X14X20 Machined Needle Roller Bearing with Shaft Sleeve 10x22x20mm - Allow 2-3 Days
Regular price €12,92 ex VAT
Regular price Sale price €12,92 ex VAT
Sale Sold out

Low stock

Price Break
3+ €10,95
4+ €10,51
9+ €10,29
19+ €9,95
49+ €9,73
99+ €9,18
499+ €7,74
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 10mm
D - Outside diameter 22mm
C - Width of bearing, drawn cup or outer ring 20mm
F - Under roller diameter 14mm
rs - Minimum fillet radius 0.3mm
s - Max axial offset 0.5mm
Lubrication hole on outer ring? No
Inner ring reference 1R10X14X20
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 13 kN
C0r - Static load rating 15.6 kN
N - Grease lubrication limit speed 16000 tr/min
N - Oil lubrication limit speed 24000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 12mm
Da max - Outer ring maximum shoulder diameter 20mm
ras max - Maximum shaft & housing fillet radius 0.3mm
