SKU: NK14/16R+1R10X14X16-NTN

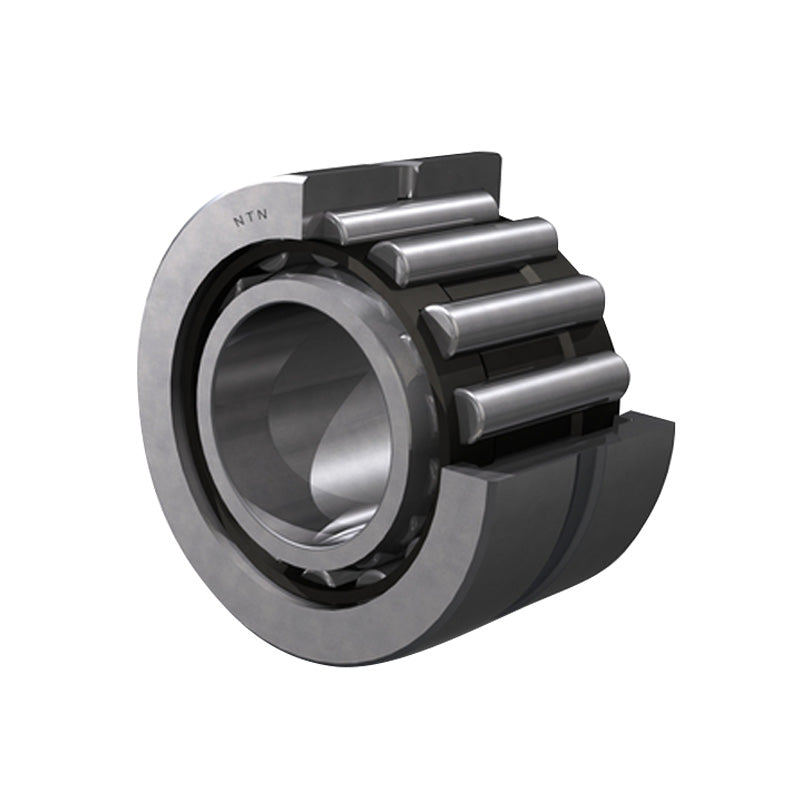

NTN NK14/16R-1R10X14X16 Machined Needle Roller Bearing with Shaft Sleeve 10x22x16mm - Allow 2-3 Days

NTN NK14/16R-1R10X14X16 Machined Needle Roller Bearing with Shaft Sleeve 10x22x16mm - Allow 2-3 Days
Regular price €11,64 ex VAT
Regular price Sale price €11,64 ex VAT
Sale Sold out

In stock

Price Break
3+ €9,86
4+ €9,46
9+ €9,26
19+ €8,96
49+ €8,76
99+ €8,27
499+ €6,97
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 10mm
D - Outside diameter 22mm
C - Width of bearing, drawn cup or outer ring 16mm
F - Under roller diameter 14mm
rs - Minimum fillet radius 0.3mm
s - Max axial offset 0.5mm
Lubrication hole on outer ring? No
Inner ring reference 1R10X14X16
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 10.3 kN
C0r - Static load rating 11.5 kN
N - Grease lubrication limit speed 16000 tr/min
N - Oil lubrication limit speed 24000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 12mm
Da max - Outer ring maximum shoulder diameter 20mm
ras max - Maximum shaft & housing fillet radius 0.3mm
