SKU: NK12/16-MB

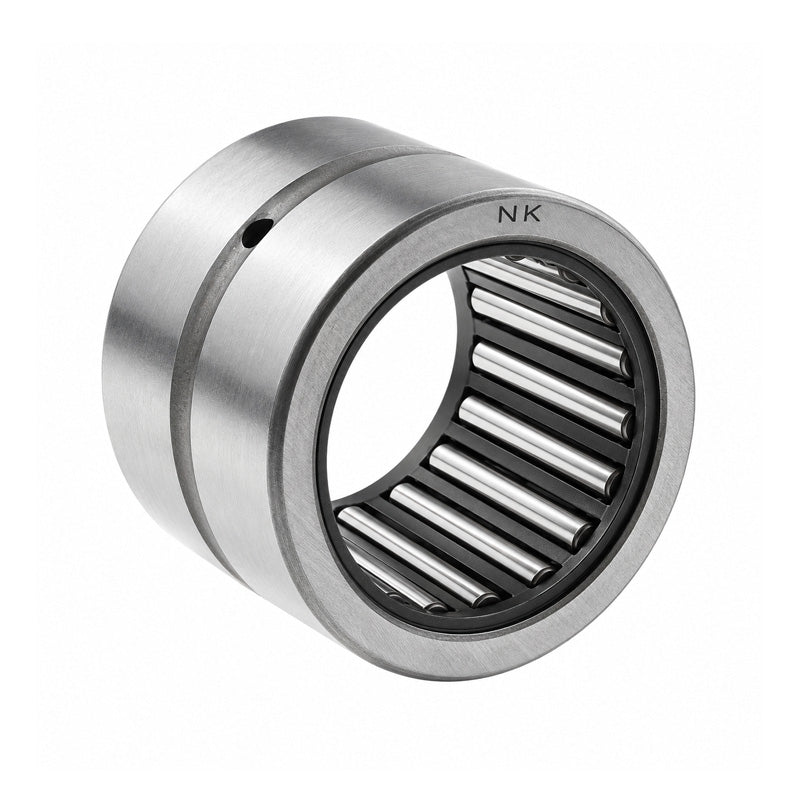

Major Brand NK12/16 Needle Roller Bearing With Flanges without Shaft Sleeve 12x19x16mm
Major Brand NK12/16 Needle Roller Bearing With Flanges without Shaft Sleeve 12x19x16mm
Regular price
€9,63
ex VAT
Regular price
Sale price
€9,63
ex VAT
In stock
Price Break
10+
€7,33
19+
€6,92
29+
€6,84
39+
€6,76
49+
€6,67
74+
€6,59
99+
€6,18
199+
€6,10
249+
€6,02
499+
€5,93
999+
€5,77
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 19mm
- Width:
- 16mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 19mm |
| C | 16mm |
| Dynamic load | 9130 N |
| Static load | 12000 N |
| Fatigue load limit Pu | 1460 N |
| Speed in grease | 19000 rpm |
| Speed in oil | 30000 rpm |
| r1r2 | 0.3mm |
| Da max | 17mm |
| ra max | 0.3mm |
| Seal | G/SD12x19x3 |
| Weight | 16 g |
