SKU: NK12/16+1R9X12X16-NTN

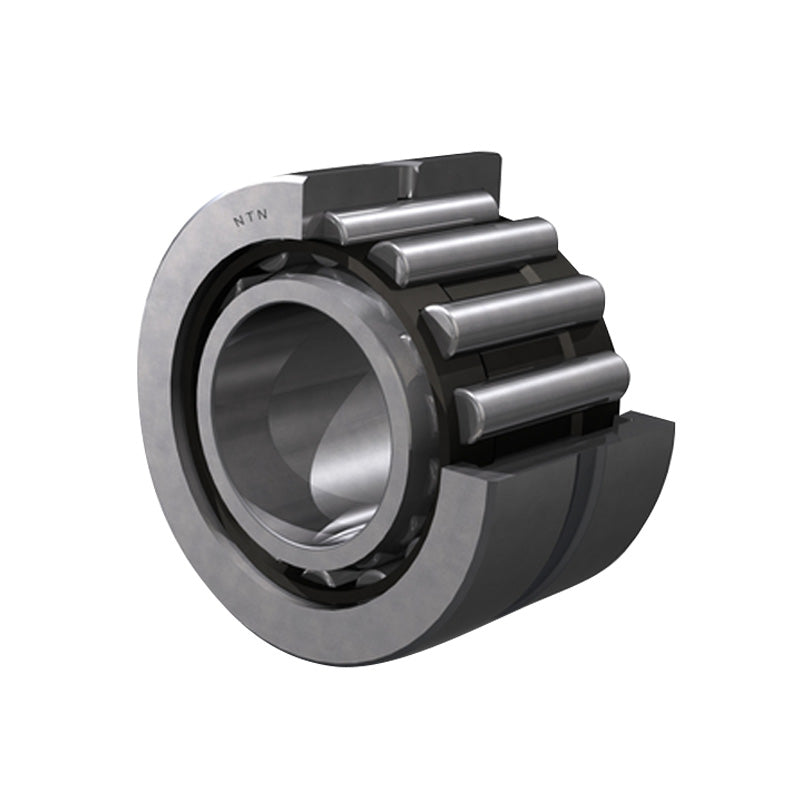

NTN NK12/16-1R9X12X16 Machined Needle Roller Bearing with Shaft Sleeve 9x19x16mm - Allow 2-3 Days

NTN NK12/16-1R9X12X16 Machined Needle Roller Bearing with Shaft Sleeve 9x19x16mm - Allow 2-3 Days
Regular price €10,34 ex VAT
Regular price Sale price €10,34 ex VAT
Sale Sold out

In stock

Price Break
3+ €8,76
4+ €8,41
9+ €8,23
19+ €7,97
49+ €7,79
99+ €7,35
499+ €6,20
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 9mm
D - Outside diameter 19mm
C - Width of bearing, drawn cup or outer ring 16mm
F - Under roller diameter 12mm
rs - Minimum fillet radius 0.3mm
s - Max axial offset 2mm
Lubrication hole on outer ring? No
Inner ring reference 1R9X12X16
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 6 kN
C0r - Static load rating 7.7 kN
N - Grease lubrication limit speed 17000 tr/min
N - Oil lubrication limit speed 26000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 11mm
Da max - Outer ring maximum shoulder diameter 13.5mm
ras max - Maximum shaft & housing fillet radius 0.3mm
