SKU: NK12/12-MB

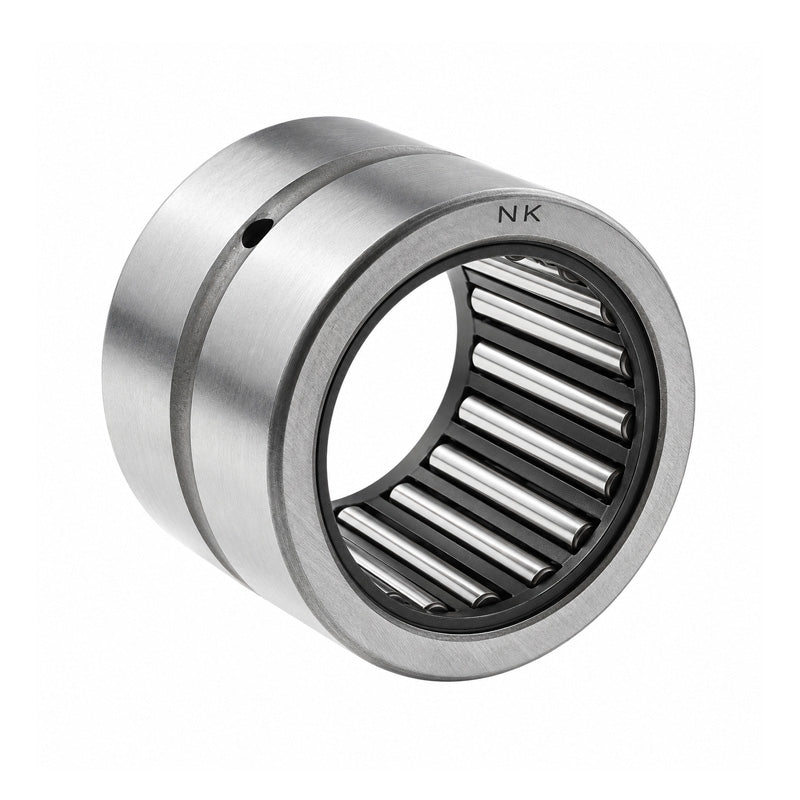

Major Brand NK12/12 Needle Roller Bearing With Flanges without Shaft Sleeve 12x19x12mm
Major Brand NK12/12 Needle Roller Bearing With Flanges without Shaft Sleeve 12x19x12mm
Regular price
€9,62
ex VAT
Regular price
Sale price
€9,62
ex VAT
In stock
Price Break
10+
€8,56
19+
€8,08
29+
€7,98
39+
€7,89
49+
€7,79
74+
€7,70
99+
€7,22
199+
€7,12
249+
€7,02
499+
€6,93
999+
€6,73
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 19mm
- Width:
- 12mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 19mm |
| C | 12mm |
| Dynamic load | 6710 N |
| Static load | 8150 N |
| Fatigue load limit Pu | 965 N |
| Speed in grease | 19000 rpm |
| Speed in oil | 30000 rpm |
| r1r2 | 0.3mm |
| Da max | 17mm |
| ra max | 0.3mm |
| Seal | G/SD12x19x3 |
| Weight | 12 g |
