SKU: NK12/12+1R9X12X12-NTN

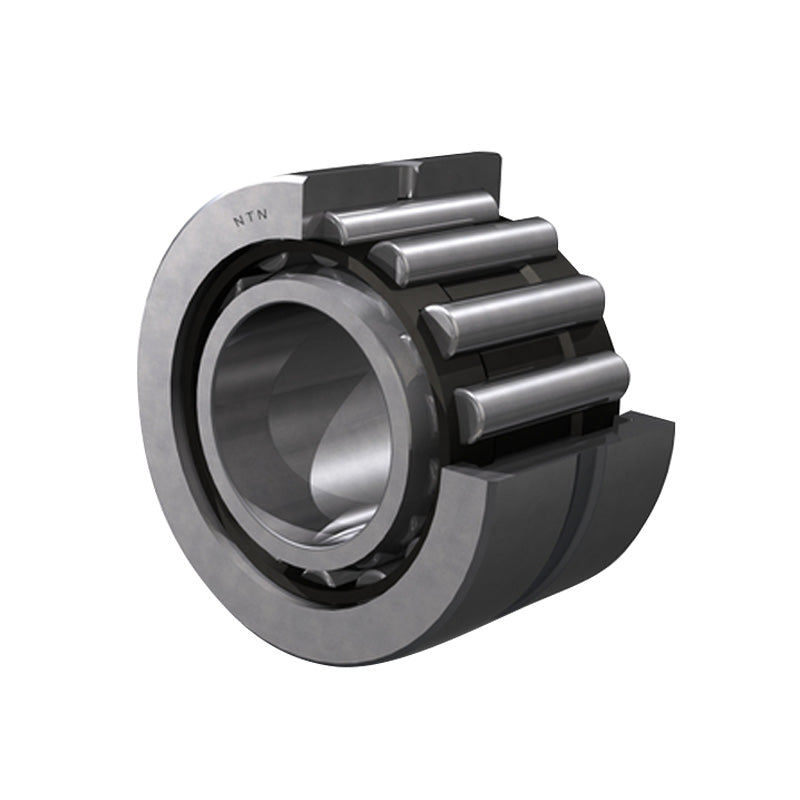

NTN NK12/12-1R9X12X12 Machined Needle Roller Bearing with Shaft Sleeve 9x19x12mm - Allow 2-3 Days

NTN NK12/12-1R9X12X12 Machined Needle Roller Bearing with Shaft Sleeve 9x19x12mm - Allow 2-3 Days
Regular price €10,33 ex VAT
Regular price Sale price €10,33 ex VAT
Sale Sold out

Low stock

Price Break
3+ €8,75
4+ €8,40
9+ €8,22
19+ €7,96
49+ €7,78
99+ €7,34
499+ €6,19
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 9mm
D - Outside diameter 19mm
C - Width of bearing, drawn cup or outer ring 12mm
F - Under roller diameter 12mm
rs - Minimum fillet radius 0.3mm
s - Max axial offset 1.5mm
Lubrication hole on outer ring? No
Inner ring reference 1R9X12X12
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 5 kN
C0r - Static load rating 6.1 kN
N - Grease lubrication limit speed 17000 tr/min
N - Oil lubrication limit speed 26000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 11mm
Da max - Outer ring maximum shoulder diameter 13.5mm
ras max - Maximum shaft & housing fillet radius 0.3mm
