SKU: NK110/30R+1R100X110X30-NTN

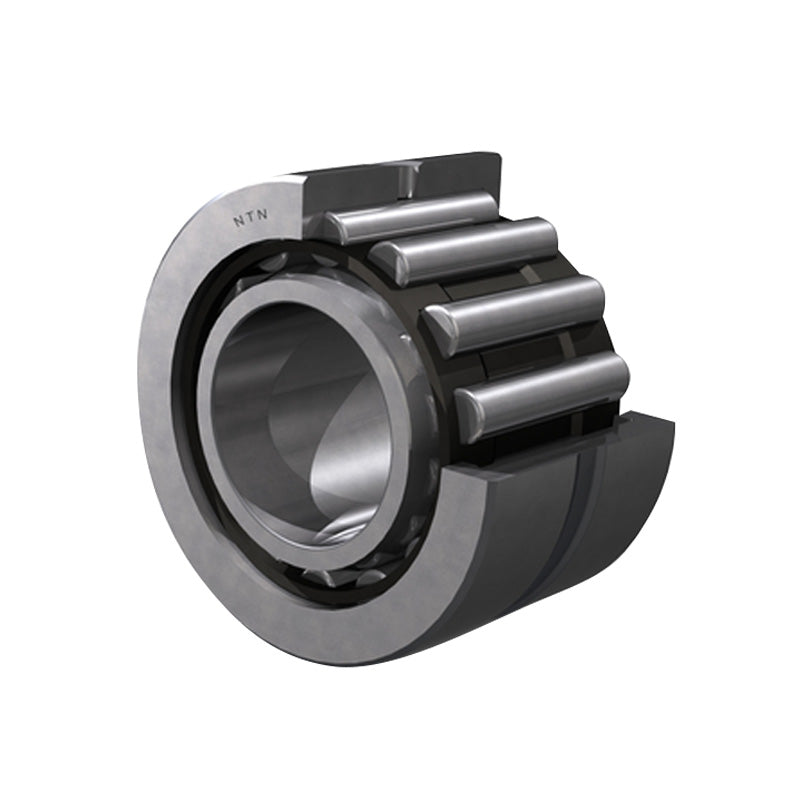

NTN NK110/30R-1R100X110X30 Machined Needle Roller Bearing with Shaft Sleeve 100x130x30mm - Allow 2-3 Days

NTN NK110/30R-1R100X110X30 Machined Needle Roller Bearing with Shaft Sleeve 100x130x30mm - Allow 2-3 Days
Regular price €181,24 ex VAT
Regular price Sale price €181,24 ex VAT
Sale Sold out

In stock

Price Break
3+ €153,54
4+ €147,34
9+ €144,23
19+ €139,58
49+ €136,48
99+ €128,72
499+ €108,56
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 100mm
D - Outside diameter 130mm
C - Width of bearing, drawn cup or outer ring 30mm
F - Under roller diameter 110mm
rs - Minimum fillet radius 1.1mm
s - Max axial offset 1.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Inner ring reference 1R100X110X30
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 97.5 kN
C0r - Static load rating 204 kN
N - Grease lubrication limit speed 2400 tr/min
N - Oil lubrication limit speed 3600 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 106.5mm
Da max - Outer ring maximum shoulder diameter 123.5mm
ras max - Maximum shaft & housing fillet radius 1mm
