SKU: NK105/36R+1R95X105X36-NTN

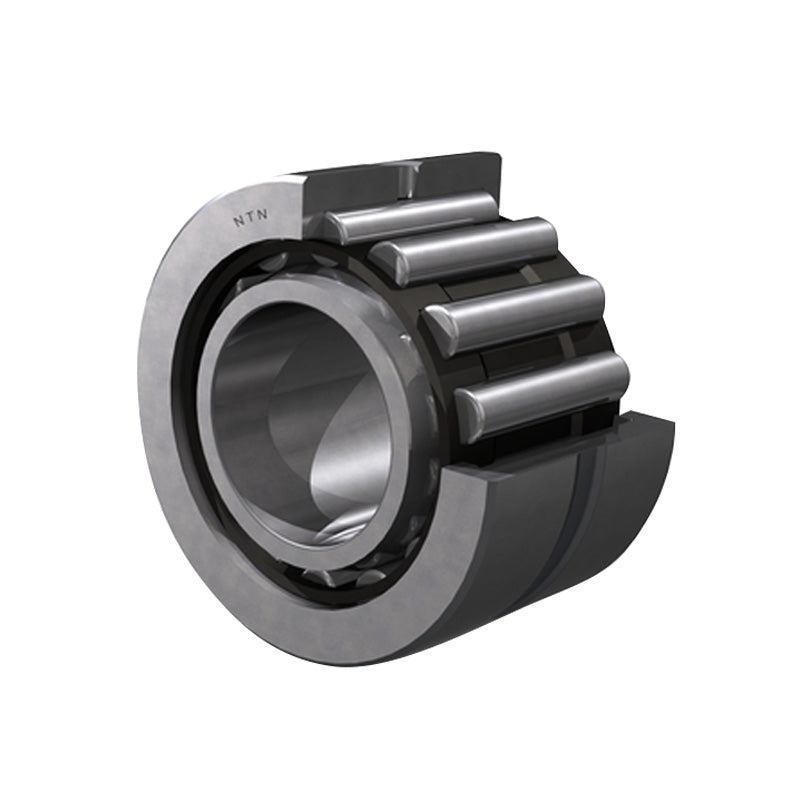

NTN NK105/36R-1R95X105X36 Machined Needle Roller Bearing with Shaft Sleeve 95x125x36mm - Allow 2-3 Days

NTN NK105/36R-1R95X105X36 Machined Needle Roller Bearing with Shaft Sleeve 95x125x36mm - Allow 2-3 Days
Regular price €181,30 ex VAT
Regular price Sale price €181,30 ex VAT
Sale Sold out

In stock

Price Break
3+ €153,59
4+ €147,38
9+ €144,28
19+ €139,63
49+ €136,52
99+ €128,77
499+ €108,60
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 95mm
D - Outside diameter 125mm
C - Width of bearing, drawn cup or outer ring 36mm
F - Under roller diameter 105mm
rs - Minimum fillet radius 1mm
s - Max axial offset 1.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Inner ring reference 1R95X105X36
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 111 kN
C0r - Static load rating 238 kN
N - Grease lubrication limit speed 2500 tr/min
N - Oil lubrication limit speed 3800 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 100mm
Da max - Outer ring maximum shoulder diameter 120mm
ras max - Maximum shaft & housing fillet radius 1mm
