SKU: NK10/16TN-EU

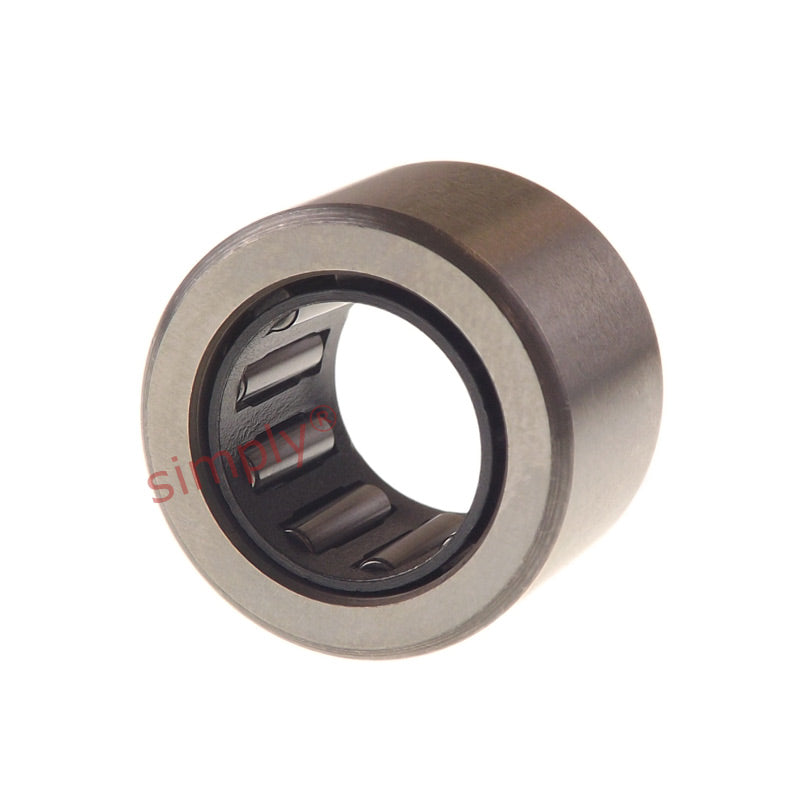

NK10/16TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 10x17x16mm
NK10/16TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 10x17x16mm
Regular price
€12,94
ex VAT
Regular price
Sale price
€12,94
ex VAT
In stock
Price Break
10+
€9,85
19+
€9,30
29+
€9,19
39+
€9,08
49+
€8,97
74+
€8,86
99+
€8,30
199+
€8,19
249+
€8,08
499+
€7,97
999+
€7,75
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 17mm
- Width:
- 16mm
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 17mm |
| C | 16mm |
| Dynamic load C | 5940 N |
| Static load Co | 8000 N |
| Fatigue load limit Pu | 900 N |
| Speed in grease | 22000 rpm |
| Speed in oil | 34000 rpm |
| r1r2 | 0.3mm |
| Da max | 15mm |
| ra max | 0.3mm |
| Seal | G/SD10x17x3 |
| Weight | 13 g |
