SKU: NJ321ECJ-EU

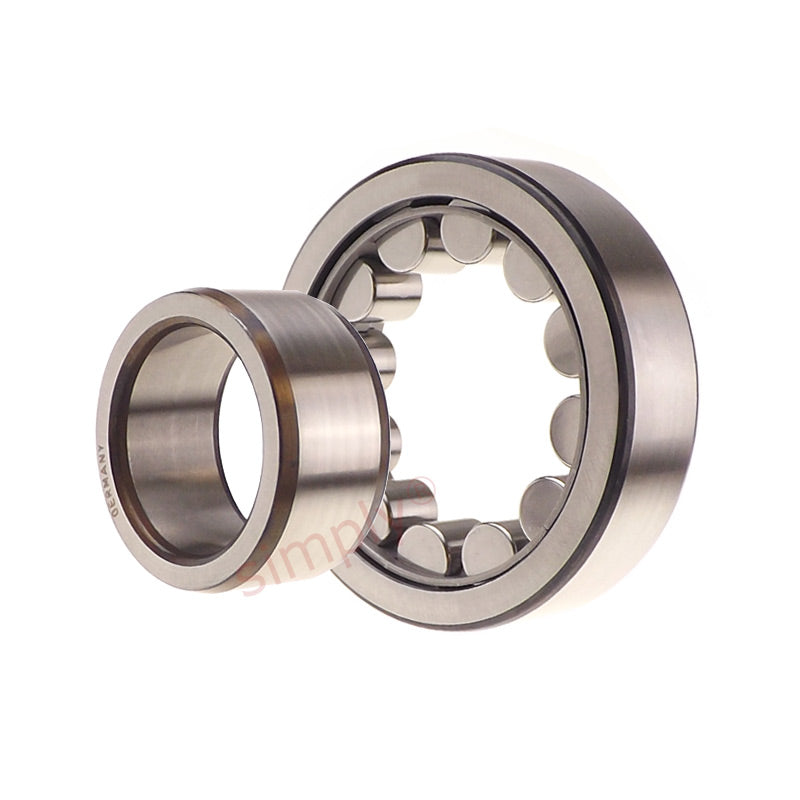

NJ321 Budget Single Row Cylindrical Roller Bearing 105x225x49mm
NJ321 Budget Single Row Cylindrical Roller Bearing 105x225x49mm
Regular price
€440,89
ex VAT
Regular price
Sale price
€440,89
ex VAT
In stock
Price Break
10+
€392,39
19+
€370,35
29+
€365,94
39+
€361,53
49+
€357,12
74+
€352,71
99+
€330,67
199+
€326,26
249+
€321,85
499+
€317,44
999+
€308,62
Couldn't load pickup availability
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 225mm
- Width:
- 49mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 105mm |
|---|---|
| D | 225mm |
| B | 49mm |
| Dynamic load C | 500 kN |
| Static load Co | 500 kN |
| Fatigue load limit Pu | 57 kN |
| Reference speed | 3200 rpm |
| Limiting speed | 3800 rpm |
| Weight | 8.75 kg |
| Cage options | ML |
| d1 | 145mm |
| D1 | 190mm |
| F, E | 133mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| s | 3.4mm |
| da min | 119mm |
| da max | 130mm |
| db min | 148mm |
| Da max | 211mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
