SKU: NJ314ECP/C3-SKF

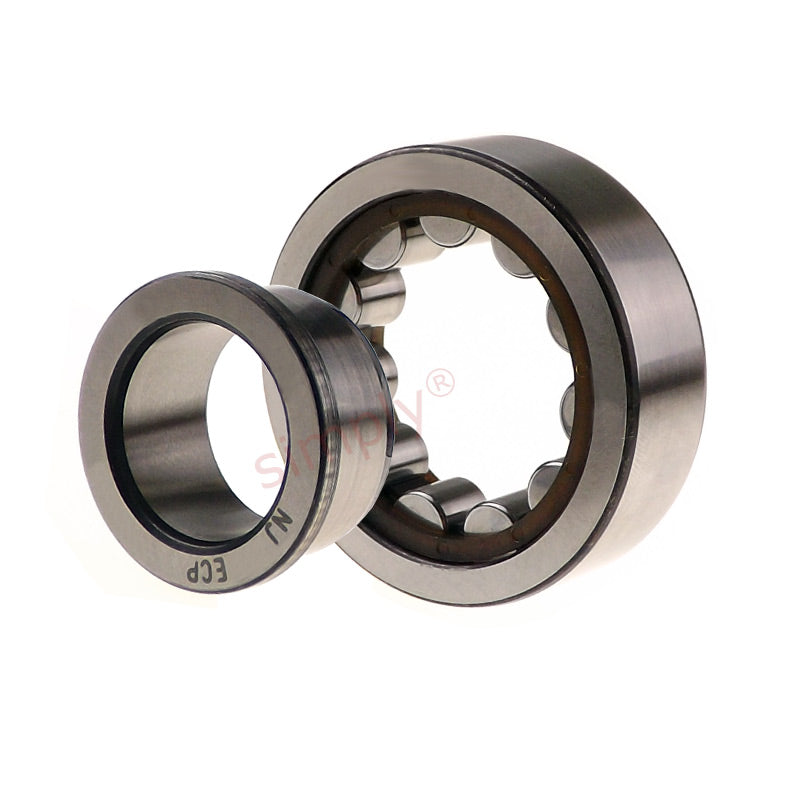

SKF NJ314ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 70x150x35mm
SKF NJ314ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 70x150x35mm
Regular price
€198,45
ex VAT
Regular price
Sale price
€198,45
ex VAT
In stock
Price Break
10+
€151,14
19+
€142,65
29+
€140,95
39+
€139,25
49+
€137,56
74+
€135,86
99+
€127,37
199+
€125,67
249+
€123,97
499+
€122,27
999+
€118,88
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 236 kN |
| Static load Co | 228 kN |
| Fatigue load limit Pu | 29 kN |
| Reference speed | 4800 rpm |
| Limiting speed | 5600 rpm |
| Weight | 2.9 kg |
| Alt cage | J.M.ML |
| d1 | 97.3mm |
| D1 | 127mm |
| F,E | 89mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 1.8mm |
| da min | 82mm |
| da max | 86mm |
| db | 100mm |
| Da max | 138mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ314EC |
| Angle ring weight | 0.32 kg |
| B1 | 10mm |
| B2 | 15.5mm |
