SKU: NJ306ECP/C4-SKF

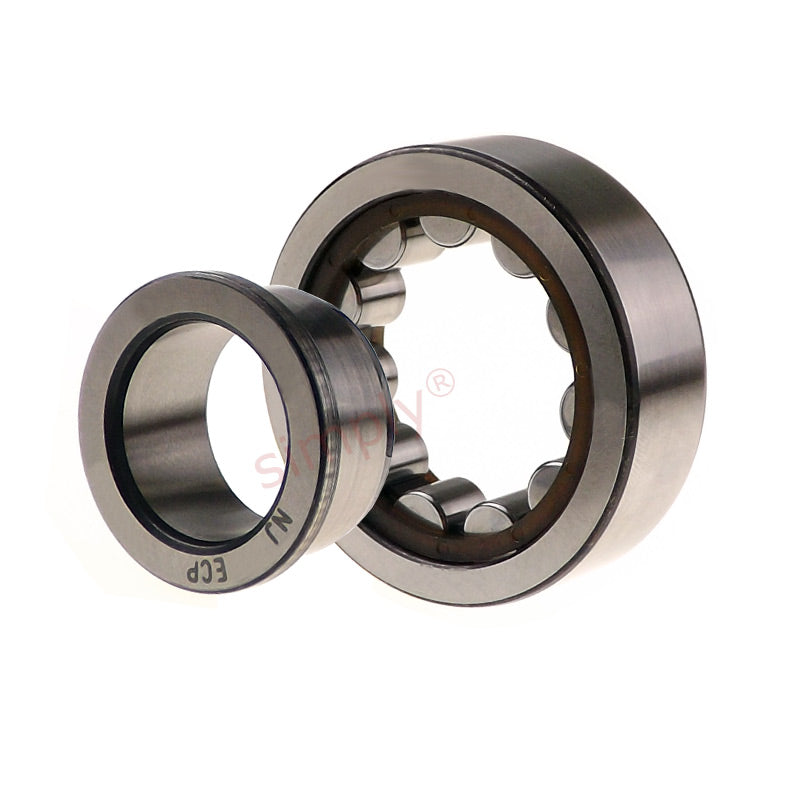

SKF NJ306ECPC4 Single Row Cylindrical Roller Bearing with Polyamide Cage 30x72x19mm
SKF NJ306ECPC4 Single Row Cylindrical Roller Bearing with Polyamide Cage 30x72x19mm
Regular price
€55,81
ex VAT
Regular price
Sale price
€55,81
ex VAT
In stock
Price Break
10+
€42,51
19+
€40,12
29+
€39,64
39+
€39,16
49+
€38,69
74+
€38,21
99+
€35,82
199+
€35,34
249+
€34,87
499+
€34,39
999+
€33,43
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 19mm |
| Dynamic load C | 58.5 kN |
| Static load Co | 48 kN |
| Fatigue load limit Pu | 6.2 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.36 kg |
| Alt cage | J.M.ML |
| d1 | 45mm |
| D1 | 58.9mm |
| F,E | 40.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| S | 1.4mm |
| da min | 37mm |
| da max | 39mm |
| db | 47mm |
| Da max | 65mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.15 |
| Angle ring | HJ306EC |
| Angle ring weight | 0.042 kg |
| B1 | 5mm |
| B2 | 8.5mm |
