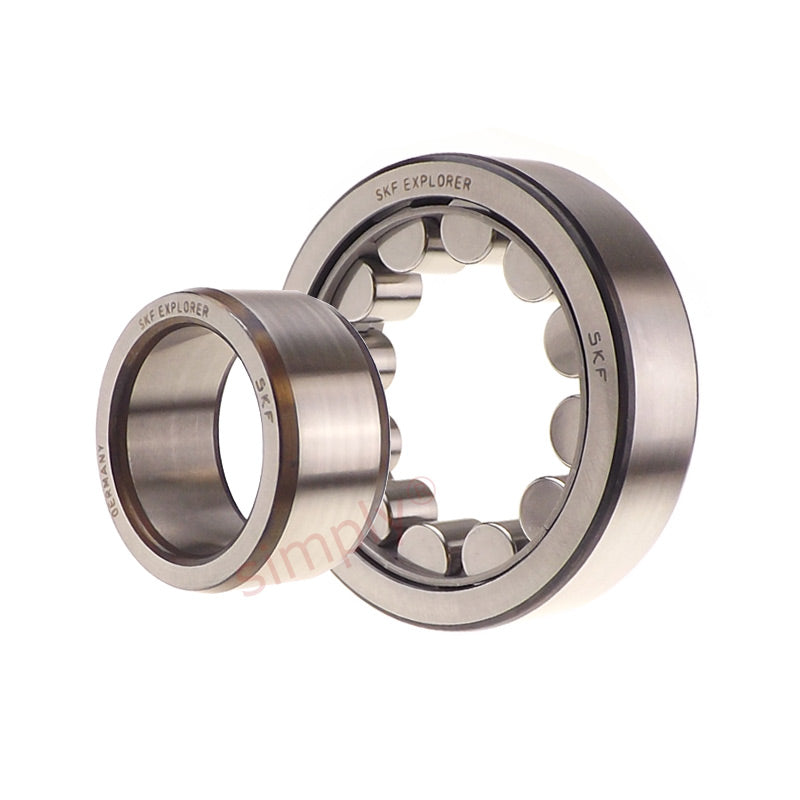

SKF NJ228ECJC3 Single Row Cylindrical Roller Bearing with Pressed Steel Cage 140x250x42mm
SKF NJ228ECJC3 Single Row Cylindrical Roller Bearing with Pressed Steel Cage 140x250x42mm
Regular price
€763,06
ex VAT
Regular price
Sale price
€763,06
ex VAT
In stock
Price Break
10+
€581,15
19+
€548,50
29+
€541,97
39+
€535,44
49+
€528,91
74+
€522,38
99+
€489,73
199+
€483,20
249+
€476,67
499+
€470,14
999+
€457,08
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 250mm
- Width:
- 42mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 140mm |
|---|---|
| D | 250mm |
| B | 42mm |
| Dynamic load C | 450 kN |
| Static load Co | 510 kN |
| Fatigue load limit Pu | 57 kN |
| Reference speed | 2800 rpm |
| Limiting speed | 3200 rpm |
| Weight | 9.2 kg |
| Alt cage | J.ML |
| d1 | 179mm |
| D1 | 217mm |
| F,E | 169mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 2.5mm |
| da min | 154mm |
| da max | 166mm |
| db | 183mm |
| Da max | 236mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
| Angle ring | HJ228EC |
| Angle ring weight | 1 kg |
| B1 | 10mm |
| B2 | 18mm |
