SKU: NJ222-EU

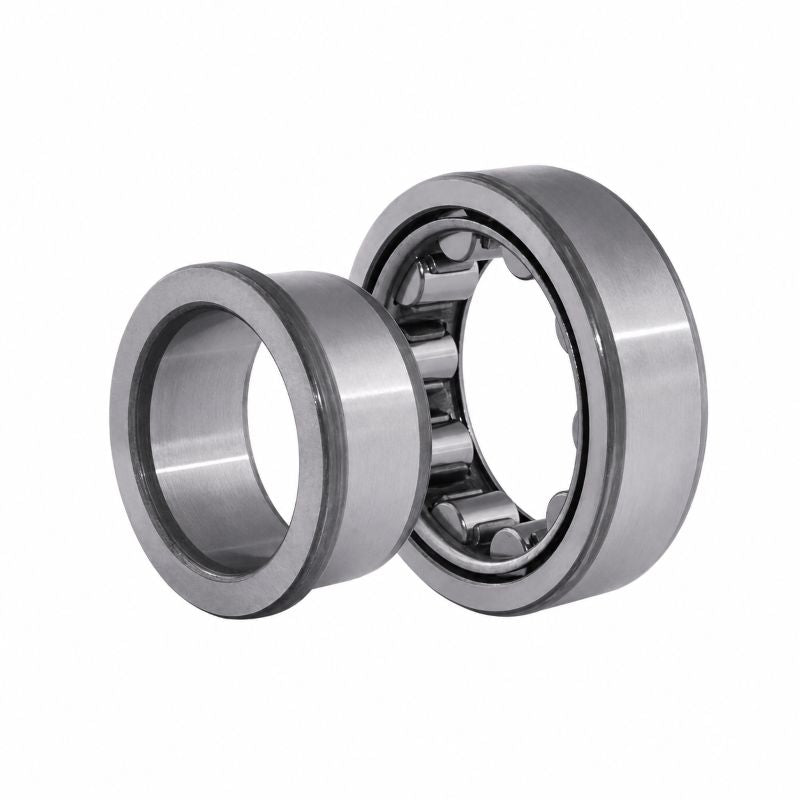

NJ222 Budget Single Row Cylindrical Roller Bearing 110x200x38mm
NJ222 Budget Single Row Cylindrical Roller Bearing 110x200x38mm
Regular price
€222,52
ex VAT
Regular price
Sale price
€222,52
ex VAT
In stock
Price Break
10+
€169,48
19+
€159,96
29+
€158,05
39+
€156,15
49+
€154,24
74+
€152,34
99+
€142,82
199+
€140,91
249+
€139,01
499+
€137,11
999+
€133,30
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 200mm
- Width:
- 38mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 110mm |
|---|---|
| D | 200mm |
| B | 38mm |
| Dynamic load C | 335 kN |
| Static load Co | 365 kN |
| Fatigue load limit Pu | 42.5 kN |
| Reference speed | 3600 rpm |
| Limiting speed | 4000 rpm |
| Weight | 4.9 kg |
| Cage options | J.M.ML |
| d1 | 141mm |
| D1 | 174mm |
| F, E | 132.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 2.1mm |
| da min | 122mm |
| da max | 130mm |
| db min | 145mm |
| Da max | 188mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ222EC |
| Angle ring weight | 0.6kg |
| B1 | 11mm |
| B2 | 17mm |
