SKU: NJ2214-EU

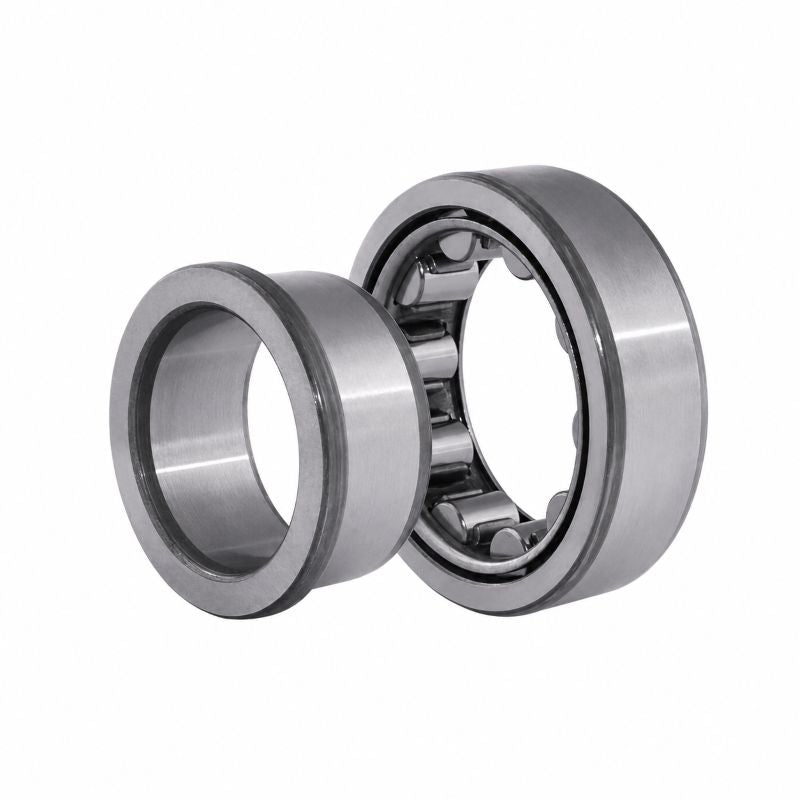

NJ2214 Budget Single Row Cylindrical Roller Bearing 70x125x31mm
NJ2214 Budget Single Row Cylindrical Roller Bearing 70x125x31mm
Regular price
€88,91
ex VAT
Regular price
Sale price
€88,91
ex VAT
In stock
Price Break
10+
€67,71
19+
€63,91
29+
€63,15
39+
€62,39
49+
€61,63
74+
€60,87
99+
€57,06
199+
€56,30
249+
€55,54
499+
€54,78
999+
€53,26
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 70mm |
|---|---|
| D | 125mm |
| B | 31mm |
| Dynamic load C | 180 kN |
| Static load Co | 193 kN |
| Fatigue load limit Pu | 25.5 kN |
| Reference speed | 6000 rpm |
| Limiting speed | 6300 rpm |
| Weight | 1.55 kg |
| Cage options | M.ML |
| d1 | 89.4mm |
| D1 | 109mm |
| F, E | 83.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 1.7mm |
| da min | 79mm |
| da max | 81mm |
| db min | 92mm |
| Da max | 116mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.2 |
| Angle ring | HJ2214EC |
| Angle ring weight | 0.16kg |
| B1 | 7mm |
| B2 | 11.5mm |
