SKU: NJ215ECP/C3-SKF

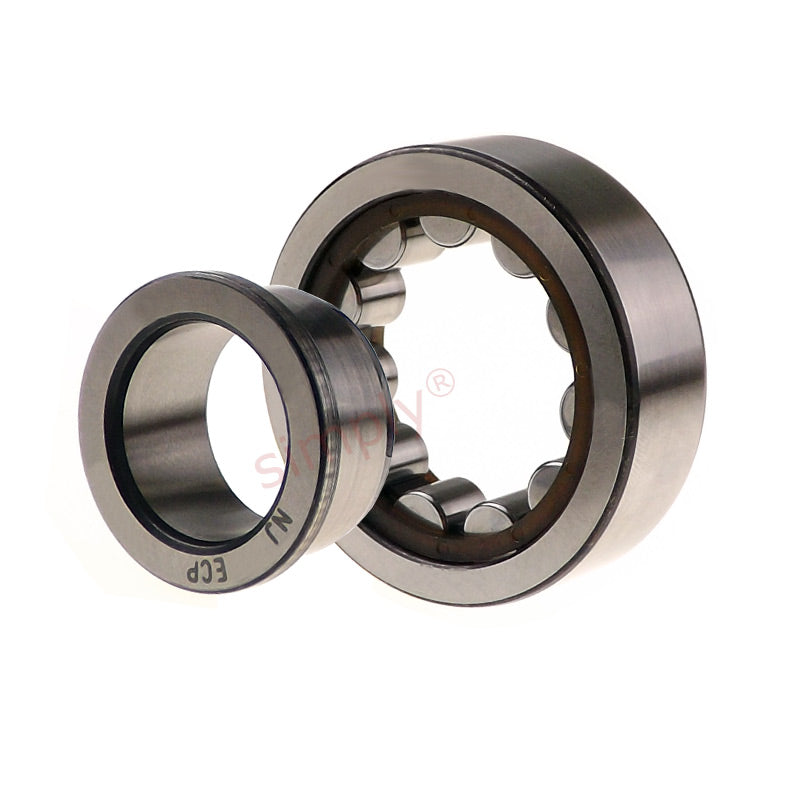

SKF NJ215ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 75x130x25mm
SKF NJ215ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 75x130x25mm
Regular price
€137,18
ex VAT
Regular price
Sale price
€137,18
ex VAT
In stock
Price Break
10+
€104,47
19+
€98,60
29+
€97,43
39+
€96,26
49+
€95,08
74+
€93,91
99+
€88,04
199+
€86,87
249+
€85,69
499+
€84,52
999+
€82,17
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| B | 25mm |
| Dynamic load C | 150 kN |
| Static load Co | 156 kN |
| Fatigue load limit Pu | 20.4 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 6000 rpm |
| Weight | 1.3 kg |
| Alt cage | J.M.ML |
| d1 | 94.3mm |
| D1 | 114mm |
| F,E | 88.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 1.2mm |
| da min | 84mm |
| da max | 86mm |
| db | 97mm |
| Da max | 121mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
| Angle ring | HJ215EC |
| Angle ring weight | 0.16 kg |
| B1 | 7mm |
| B2 | 11mm |
