SKU: NJ214ECP/C3-SKF

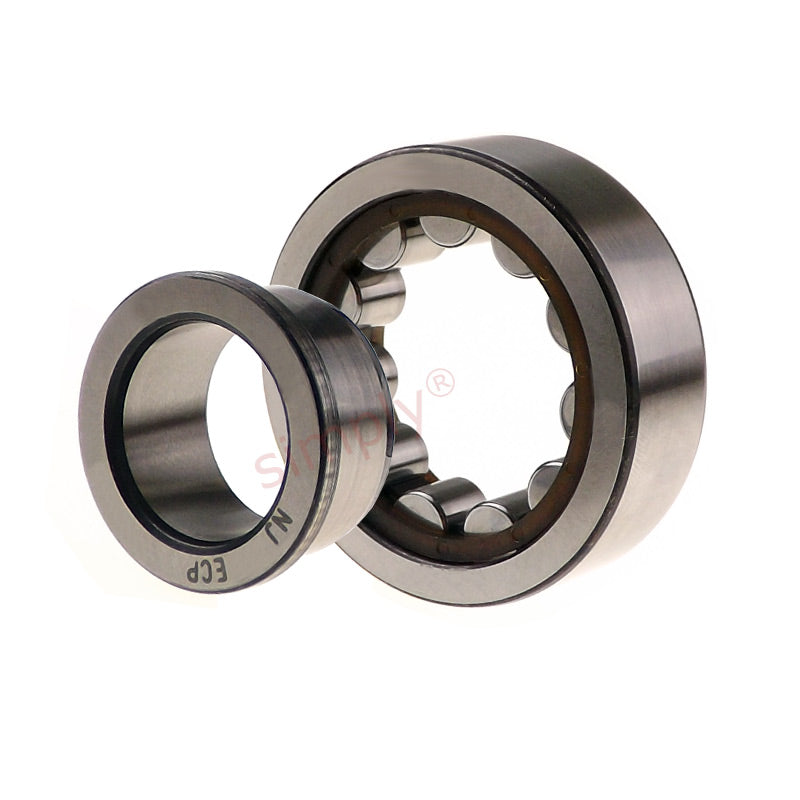

SKF NJ214ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 70x125x24mm
SKF NJ214ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 70x125x24mm
Regular price
€128,83
ex VAT
Regular price
Sale price
€128,83
ex VAT
In stock
Price Break
10+
€98,11
19+
€92,60
29+
€91,50
39+
€90,39
49+
€89,29
74+
€88,19
99+
€82,68
199+
€81,58
249+
€80,47
499+
€79,37
999+
€77,17
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 70mm |
|---|---|
| D | 125mm |
| B | 24mm |
| Dynamic load C | 137 kN |
| Static load Co | 137 kN |
| Fatigue load limit Pu | 18 kN |
| Reference speed | 6000 rpm |
| Limiting speed | 6300 rpm |
| Weight | 1.15 kg |
| Alt cage | J.M.ML |
| d1 | 89.4mm |
| D1 | 109mm |
| F,E | 83.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 1.2mm |
| da min | 79mm |
| da max | 81mm |
| db | 92mm |
| Da max | 116mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
| Angle ring | HJ214EC |
| Angle ring weight | 0.15 kg |
| B1 | 7mm |
| B2 | 11mm |
