SKU: NJ209ECP-SKF

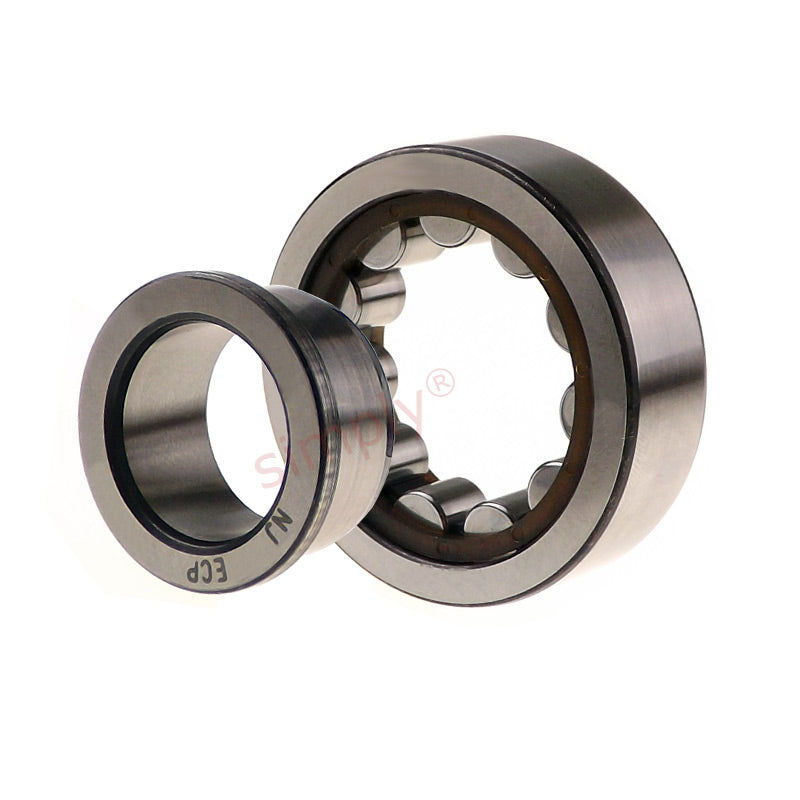

SKF NJ209ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 45x85x19mm
SKF NJ209ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 45x85x19mm
Regular price
€61,28
ex VAT
Regular price
Sale price
€61,28
ex VAT
In stock
Price Break
10+
€46,67
19+
€44,05
29+
€43,53
39+
€43,00
49+
€42,48
74+
€41,95
99+
€39,33
199+
€38,81
249+
€38,28
499+
€37,76
999+
€36,71
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 19mm |
| Dynamic load C | 69.5 kN |
| Static load Co | 64 kN |
| Fatigue load limit Pu | 8.15 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.44 kg |
| Alt cage | J.M.ML |
| d1 | 59mm |
| D1 | 73mm |
| F,E | 54.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| S | 1.2mm |
| da min | 52mm |
| da max | 53mm |
| db | 61mm |
| Da max | 78mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.15 |
| Angle ring | HJ209EC |
| Angle Ring Weight | 0.052 kg |
| B1 | 5mm |
| B2 | 8.5mm |
