SKU: NJ206ECP/C3-SKF

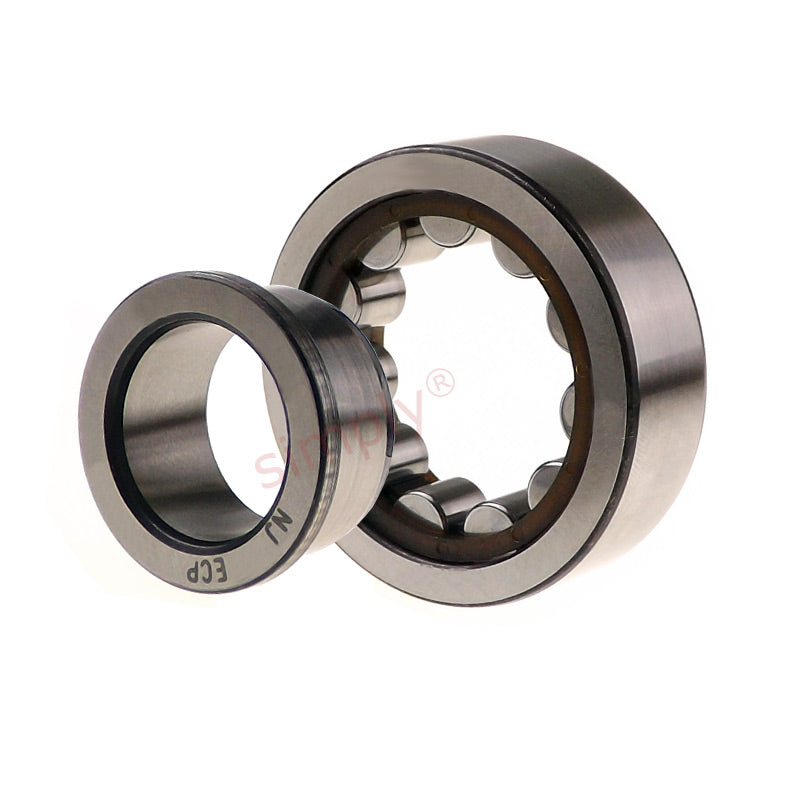

SKF NJ206ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 30x62x16mm
SKF NJ206ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 30x62x16mm
Regular price
€44,57
ex VAT
Regular price
Sale price
€44,57
ex VAT
In stock
Price Break
10+
€33,95
19+
€32,04
29+
€31,66
39+
€31,28
49+
€30,89
74+
€30,51
99+
€28,61
199+
€28,22
249+
€27,84
499+
€27,46
999+
€26,70
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 16mm |
| Dynamic load C | 44 kN |
| Static load Co | 36.5 kN |
| Fatigue load limit Pu | 4.55 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.2 kg |
| Alt cage | J.ML |
| d1 | 41.2mm |
| D1 | 52.5mm |
| F,E | 37.5mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| S | 1.3mm |
| da min | 35.6mm |
| da max | 36mm |
| db | 43mm |
| Da max | 56.4mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.15 |
| Angle ring | HJ206EC |
| Angle ring weight | 0.025 kg |
| B1 | 4mm |
| B2 | 7mm |
