SKU: NJ203-EU

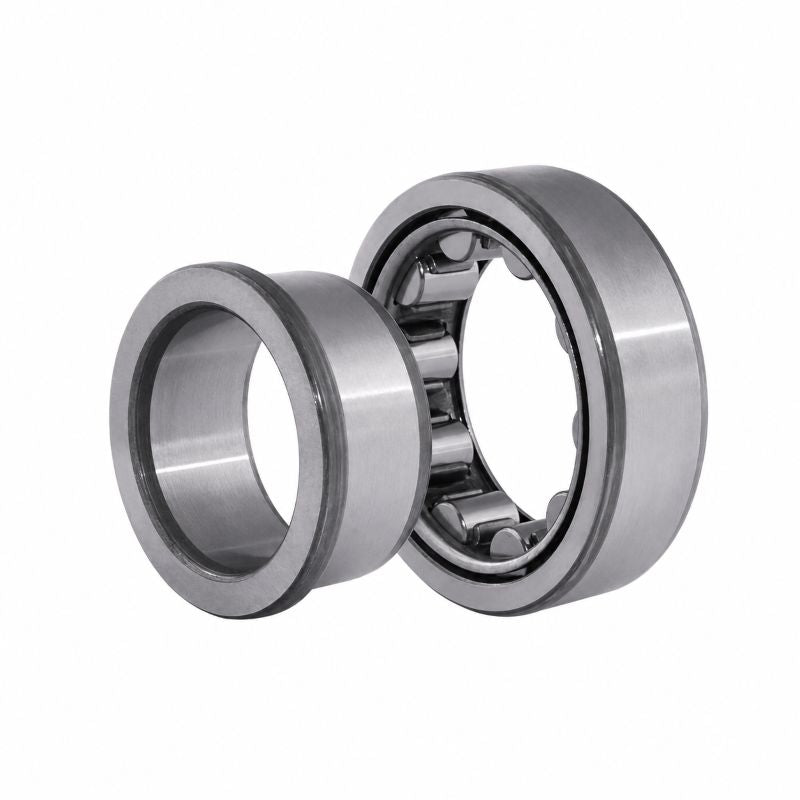

NJ203 Budget Single Row Cylindrical Roller Bearing 17x40x12mm
NJ203 Budget Single Row Cylindrical Roller Bearing 17x40x12mm
Regular price
€19,64
ex VAT
Regular price
Sale price
€19,64
ex VAT
In stock
Price Break
10+
€14,97
19+
€14,12
29+
€13,96
39+
€13,79
49+
€13,62
74+
€13,45
99+
€12,61
199+
€12,44
249+
€12,27
499+
€12,11
999+
€11,77
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| Dynamic load C | 17.2 kN |
| Static load Co | 14.3 kN |
| Fatigue load limit Pu | 1.73 kN |
| Reference speed | 19000 rpm |
| Limiting speed | 22000 rpm |
| Weight | 0.07 kg |
| Cage options | ML |
| d1 | 25mm |
| D1 | 32.4mm |
| F, E | 22.1mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.3mm |
| s | 1mm |
| da min | 21mm |
| da max | 21mm |
| db min | 27mm |
| Da max | 35.8mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| kr | 0.15 |
