SKU: NAO90x120x30-EU

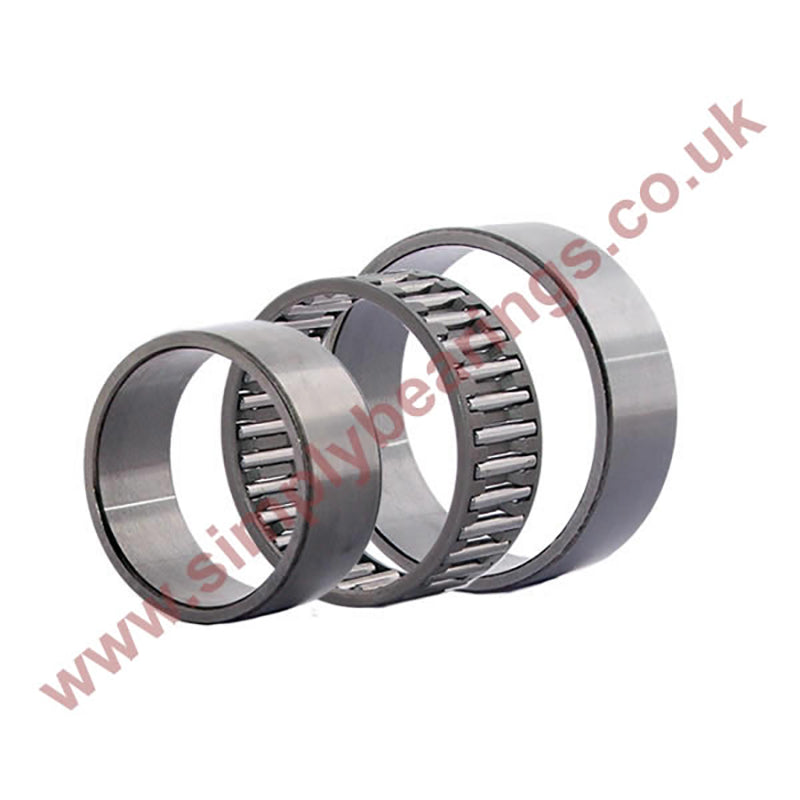

NAO90x120x30 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
NAO90x120x30 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
Regular price
€195,71
ex VAT
Regular price
Sale price
€195,71
ex VAT
In stock
Price Break
10+
€174,18
19+
€164,40
29+
€162,44
39+
€160,48
49+
€158,53
74+
€156,57
99+
€146,78
199+
€144,83
249+
€142,87
499+
€140,91
999+
€137,00
Couldn't load pickup availability
Description
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 120mm
- Width:
- 30mm
Technical
Technical
| d | 90mm |
|---|---|
| D | 120mm |
| B | 30mm |
| Dynamic load C | 67100 N |
| Static load Co | 190000 N |
| Fatigue load limit Pu | 23600 N |
| Speed in grease | 2800 rpm |
| Speed in oil | 4000 rpm |
| E | 108mm |
| F | 100mm |
| r1r2 min | 1mm |
| S (axial disp) | 1mm |
| da | 107.2mm |
| db | 99.3mm |
| Da | 109mm |
| Db | 101mm |
| ra max | 1mm |
| Weight | 1050 g |
