SKU: NAO25x42x16-EU

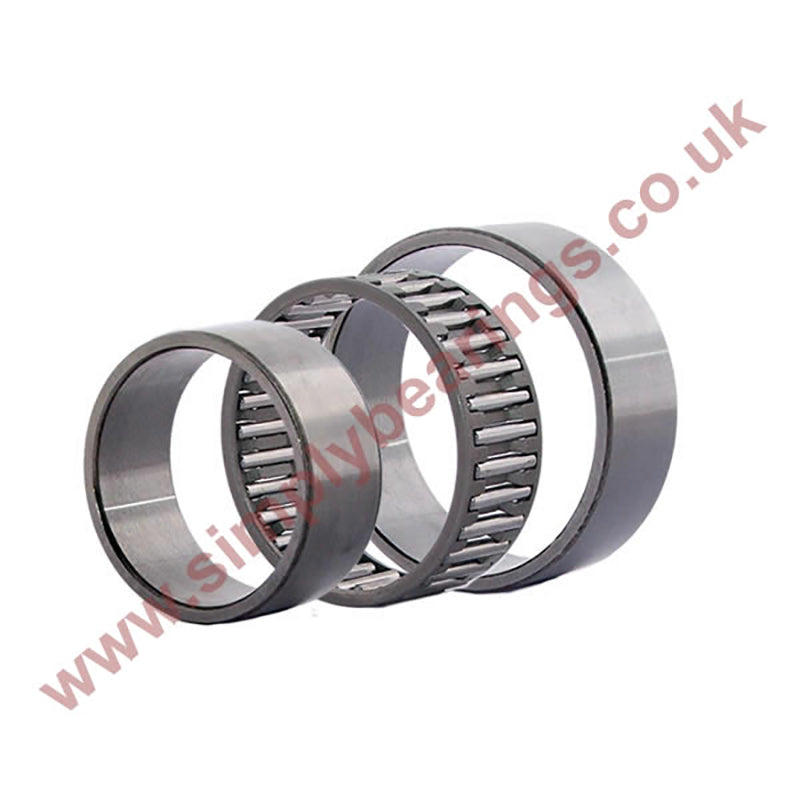

NAO25x42x16 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
NAO25x42x16 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
Regular price
€17,01
ex VAT
Regular price
Sale price
€17,01
ex VAT
In stock
Price Break
10+
€12,96
19+
€12,23
29+
€12,08
39+
€11,94
49+
€11,79
74+
€11,65
99+
€10,92
199+
€10,77
249+
€10,63
499+
€10,48
999+
€10,19
Description
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 16mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| B | 16mm |
| Dynamic load C | 22000 N |
| Static load Co | 33500 N |
| Fatigue load limit Pu | 4000 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| E | 37mm |
| F | 30mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.8mm |
| da | 36.4mm |
| db | 29.5mm |
| Da | 37.5mm |
| Db | 30.6mm |
| ra max | 0.3mm |
| Weight | 86 g |
