SKU: NAO20x35x17-MB

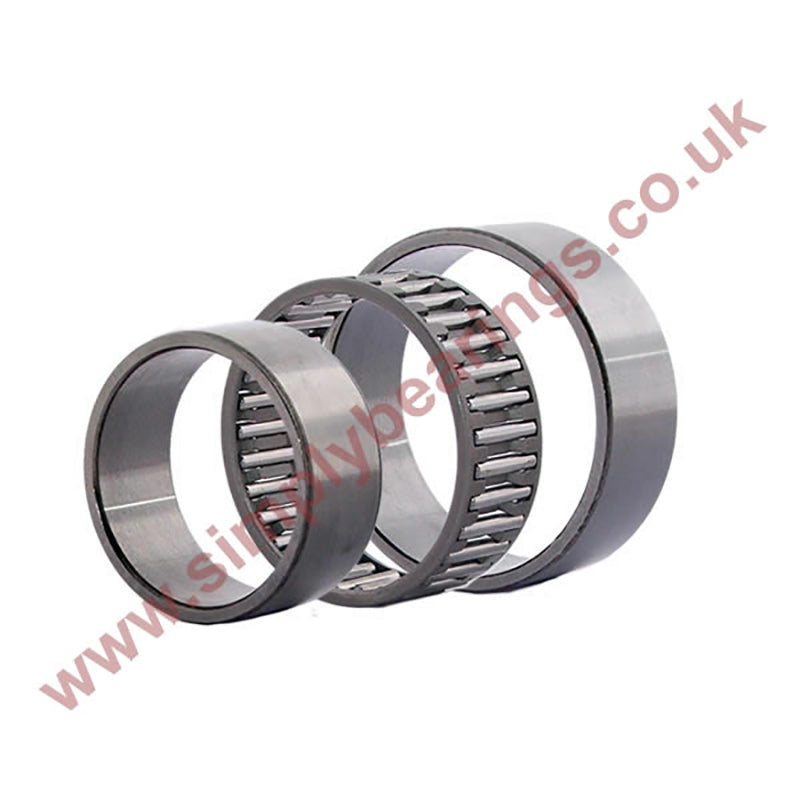

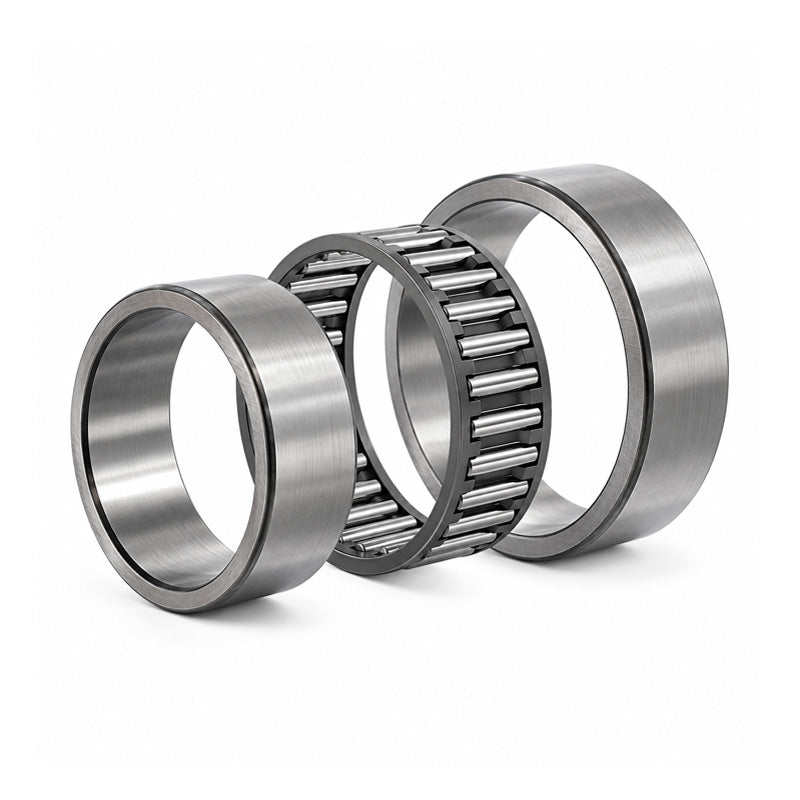

Major Brand NAO20x35x17 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO20x35x17 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
€33,41
ex VAT
Regular price
Sale price
€33,41
ex VAT
In stock
Price Break
10+
€25,44
19+
€24,01
29+
€23,73
39+
€23,44
49+
€23,16
74+
€22,87
99+
€21,44
199+
€21,15
249+
€20,87
499+
€20,58
999+
€20,01
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 17mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 35mm |
| B | 17mm |
| Dynamic load | 14200 N |
| Static load | 26500 N |
| Fatigue load limit Pu | 3100 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| E | 30mm |
| F | 25mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 29.4mm |
| db | 24.5mm |
| Da | 30.5mm |
| Db | 25.6mm |
| ra max | 0.3mm |
| Weight | 76 g |
