SKU: NAO12x28x12-MB

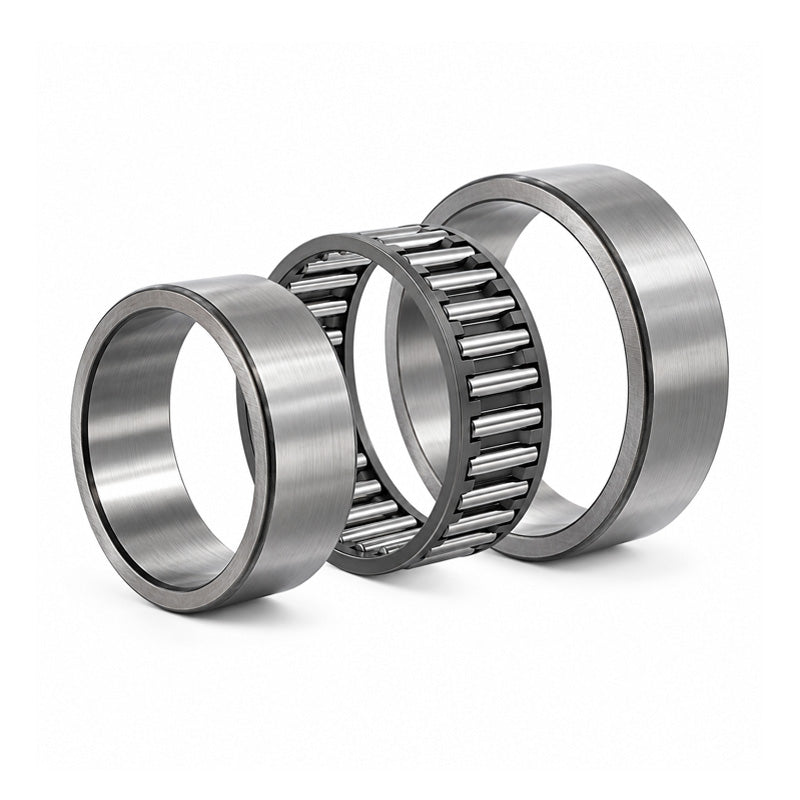

Major Brand NAO12x28x12 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO12x28x12 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
€23,03
ex VAT
Regular price
Sale price
€23,03
ex VAT
In stock
Price Break
10+
€17,54
19+
€16,55
29+
€16,36
39+
€16,16
49+
€15,96
74+
€15,77
99+
€14,78
199+
€14,58
249+
€14,39
499+
€14,19
999+
€13,79
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 12mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 28mm |
| B | 12mm |
| Dynamic load | 11000 N |
| Static load | 12500 N |
| Fatigue load limit Pu | 1500 N |
| Speed in grease | 15000 rpm |
| Speed in oil | 22000 rpm |
| E | 22mm |
| F | 16mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 21.6mm |
| db | 15.7mm |
| Da | 22.3mm |
| Db | 16.6mm |
| ra max | 0.3mm |
| Weight | 40 g |
