SKU: NAO12x24x13-EU

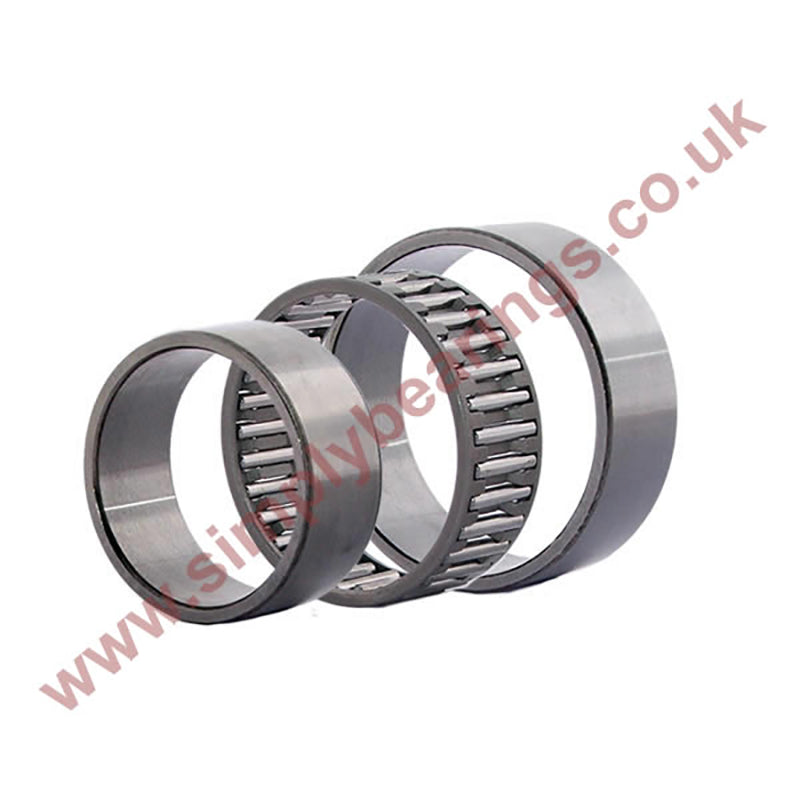

NAO12x24x13 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
NAO12x24x13 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
Regular price
€10,91
ex VAT
Regular price
Sale price
€10,91
ex VAT
In stock
Price Break
10+
€8,31
19+
€7,84
29+
€7,75
39+
€7,66
49+
€7,56
74+
€7,47
99+
€7,00
199+
€6,91
249+
€6,82
499+
€6,72
999+
€6,54
Description
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 13mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 13mm |
| Dynamic load C | 8580 N |
| Static load Co | 12000 N |
| Fatigue load limit Pu | 1370 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| E | 20mm |
| F | 16mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 19.6mm |
| db | 15.7mm |
| Da | 20.3mm |
| Db | 16.4mm |
| ra max | 0.3mm |
| Weight | 30 g |
