SKU: NA6916R-NTN

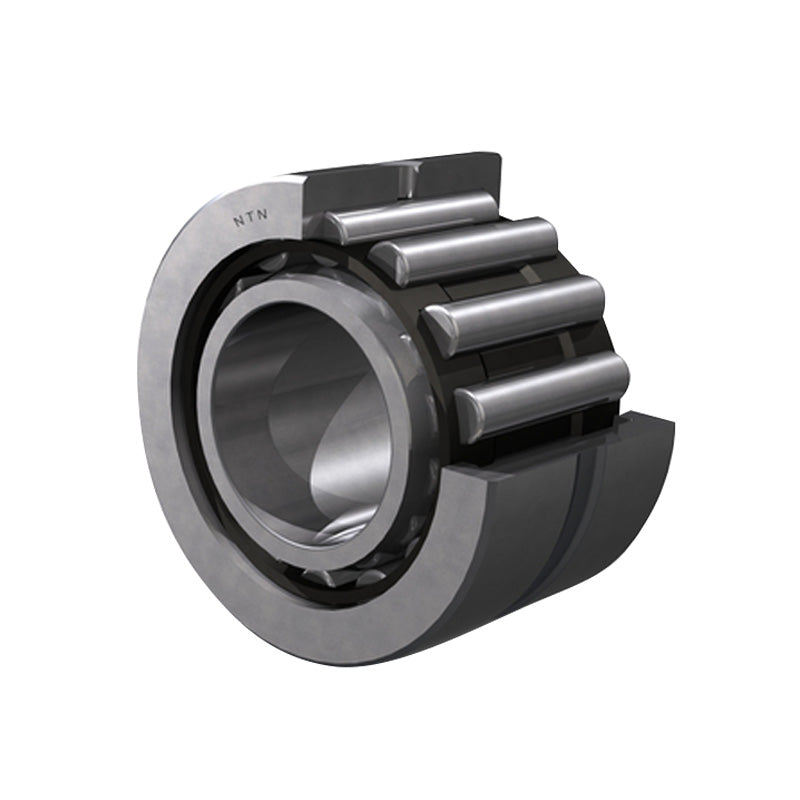

NTN NA6916R Machined Needle Roller Bearing with Shaft Sleeve 80x110x54mm - Allow 2-3 Days

NTN NA6916R Machined Needle Roller Bearing with Shaft Sleeve 80x110x54mm - Allow 2-3 Days
Regular price €207,09 ex VAT
Regular price Sale price €207,09 ex VAT
Sale Sold out

In stock

Price Break
3+ €175,44
4+ €168,35
9+ €164,81
19+ €159,49
49+ €155,94
99+ €147,08
499+ €124,05
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 80mm
D - Outside diameter 110mm
C - Width of bearing, drawn cup or outer ring 54mm
F - Under roller diameter 90mm
rs - Minimum fillet radius 1mm
s - Max axial offset 1.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 137 kN
C0r - Static load rating 298 kN
N - Grease lubrication limit speed 2900 tr/min
N - Oil lubrication limit speed 4400 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 85mm
Da max - Outer ring maximum shoulder diameter 105mm
ras max - Maximum shaft & housing fillet radius 1mm
