SKU: NA6906R-NTN

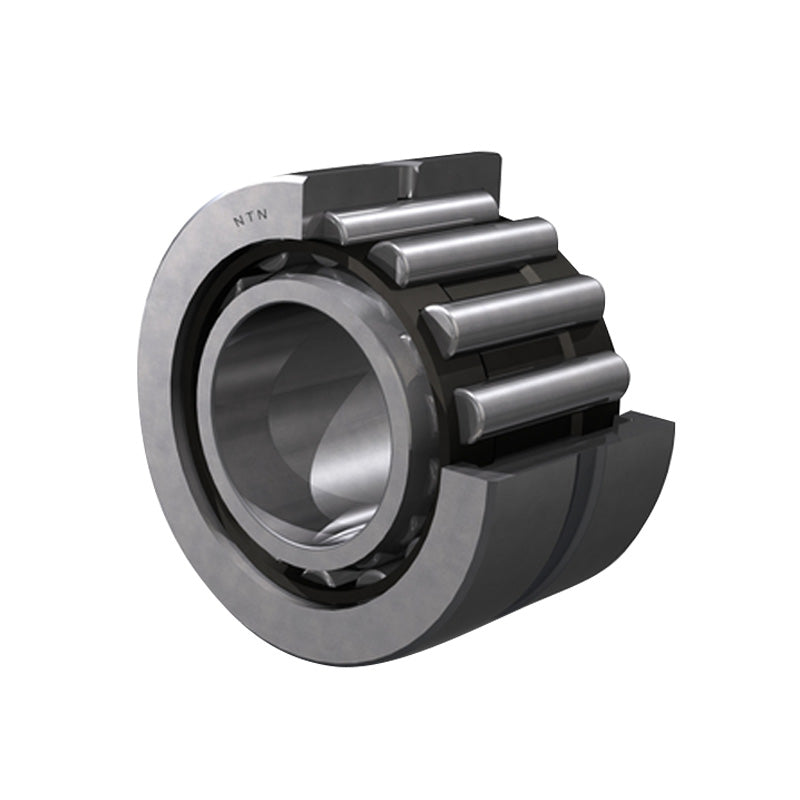

NTN NA6906R Machined Needle Roller Bearing with Shaft Sleeve 30x47x30mm

NTN NA6906R Machined Needle Roller Bearing with Shaft Sleeve 30x47x30mm
Regular price €39,19 ex VAT
Regular price Sale price €39,19 ex VAT
Sale Sold out

In stock

Price Break
3+ €29,85
4+ €28,17
9+ €27,84
19+ €27,50
49+ €27,17
99+ €26,83
499+ €25,16
999+ €24,82
1999+ €24,48
2999+ €24,15
4999+ €23,48
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 30mm
D - Outside diameter 47mm
C - Width of bearing, drawn cup or outer ring 30mm
F - Under roller diameter 35mm
rs - Minimum fillet radius 0.3mm
s - Max axial offset 1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 42.5 kN
C0r - Static load rating 67.5 kN
N - Grease lubrication limit speed 7500 tr/min
N - Oil lubrication limit speed 11000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 32mm
Da max - Outer ring maximum shoulder diameter 45mm
ras max - Maximum shaft & housing fillet radius 0.3mm
