SKU: NA5910-NTN

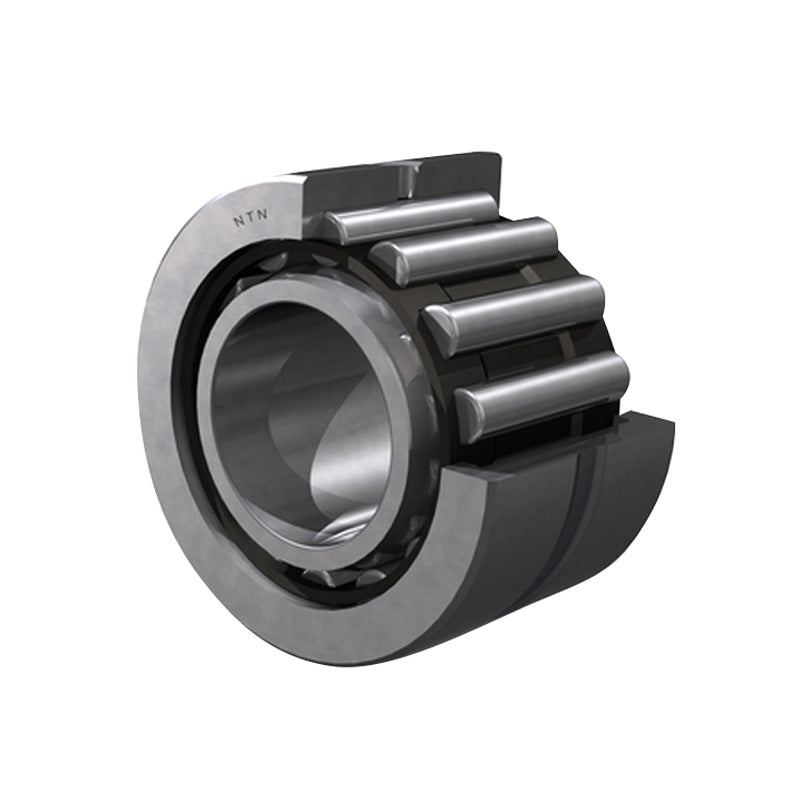

NTN NA5910 Machined Needle Roller Bearing with Shaft Sleeve 50x72x30mm - Allow 2-3 Days

NTN NA5910 Machined Needle Roller Bearing with Shaft Sleeve 50x72x30mm - Allow 2-3 Days
Regular price €51,78 ex VAT
Regular price Sale price €51,78 ex VAT
Sale Sold out

In stock

Price Break
3+ €43,87
4+ €42,09
9+ €41,21
19+ €39,88
49+ €38,99
99+ €36,78
499+ €31,02
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 50mm
D - Outside diameter 72mm
C - Width of bearing, drawn cup or outer ring 30mm
F - Under roller diameter 58mm
rs - Minimum fillet radius 0.6mm
s - Max axial offset 1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 58 kN
C0r - Static load rating 110 kN
N - Grease lubrication limit speed 4700 tr/min
N - Oil lubrication limit speed 7000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 54mm
Da max - Outer ring maximum shoulder diameter 68mm
ras max - Maximum shaft & housing fillet radius 0.6mm
