SKU: NA4907LL/3AS-NTN

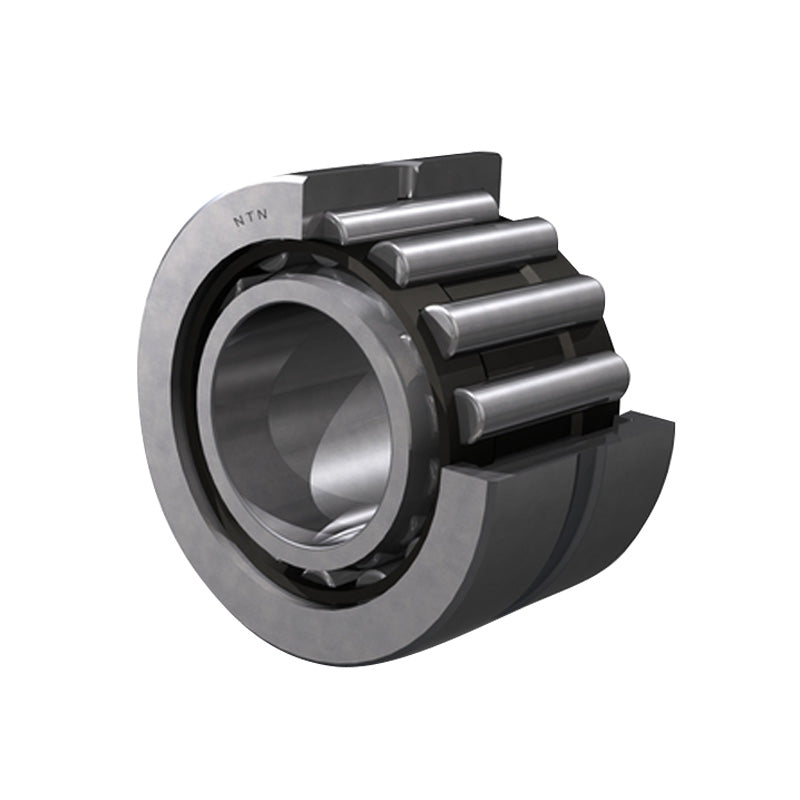

NTN NA4907LL/3AS Machined Needle Roller Bearing with Shaft Sleeve 35x55x20mm - Allow 2-3 Days

NTN NA4907LL/3AS Machined Needle Roller Bearing with Shaft Sleeve 35x55x20mm - Allow 2-3 Days
Regular price €36,25 ex VAT
Regular price Sale price €36,25 ex VAT
Sale Sold out

In stock

Price Break
3+ €30,71
4+ €29,47
9+ €28,85
19+ €27,92
49+ €27,30
99+ €25,75
499+ €21,71
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 35mm
D - Outside diameter 55mm
B - Width of bearing / Inner ring 21mm
C - Width of bearing, drawn cup or outer ring 20mm
F - Under roller diameter 42mm
rs - Minimum fillet radius 0.6mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Lubrication hole on innr ring? Yes
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 22.7 kN
C0r - Static load rating 39.5 kN
N - Grease lubrication limit speed 4800 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
da min - Inner ring minimum shoulder diameter 39mm
Da max - Outer ring maximum shoulder diameter 45mm
Db max - Outer ring maximum smooth shaft shoulder diameter 51mm
ras max - Maximum shaft & housing fillet radius 0.6mm
