SKU: NA4901LL/3AS-NTN

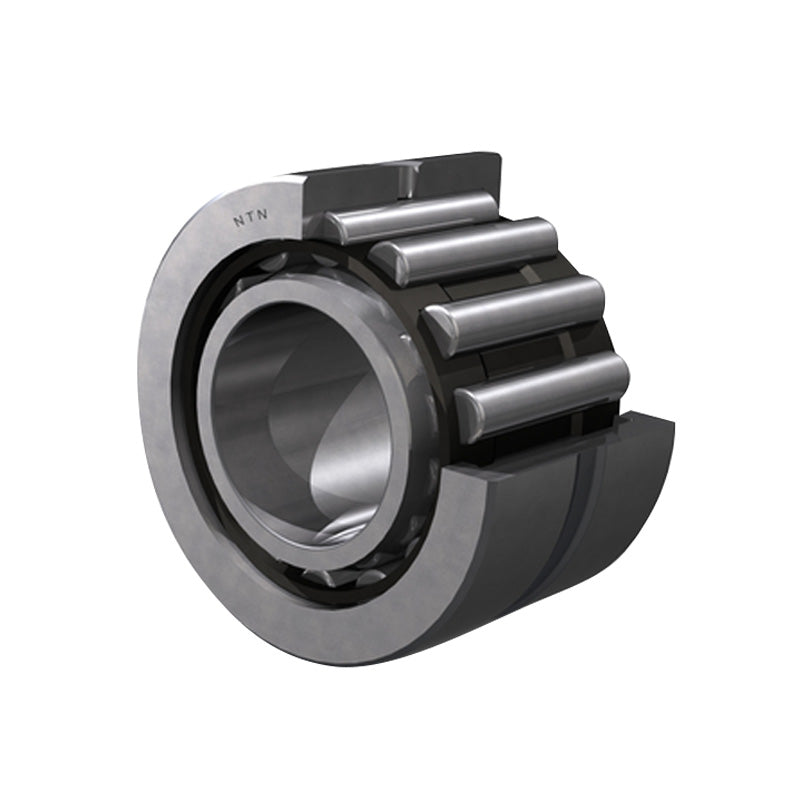

NTN NA4901LL/3AS Machined Needle Roller Bearing with Shaft Sleeve 12x24x13mm - Allow 2-3 Days

NTN NA4901LL/3AS Machined Needle Roller Bearing with Shaft Sleeve 12x24x13mm - Allow 2-3 Days
Regular price €23,28 ex VAT
Regular price Sale price €23,28 ex VAT
Sale Sold out

In stock

Price Break
3+ €19,72
4+ €18,92
9+ €18,53
19+ €17,93
49+ €17,53
99+ €16,53
499+ €13,94
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 12mm
D - Outside diameter 24mm
B - Width of bearing / Inner ring 14mm
C - Width of bearing, drawn cup or outer ring 13mm
F - Under roller diameter 16mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Lubrication hole on innr ring? Yes
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 7.75 kN
C0r - Static load rating 9.7 kN
N - Grease lubrication limit speed 10000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
da min - Inner ring minimum shoulder diameter 14mm
Da max - Outer ring maximum shoulder diameter 18mm
Db max - Outer ring maximum smooth shaft shoulder diameter 22mm
ras max - Maximum shaft & housing fillet radius 0.3mm
