SKU: NA4872-NTN

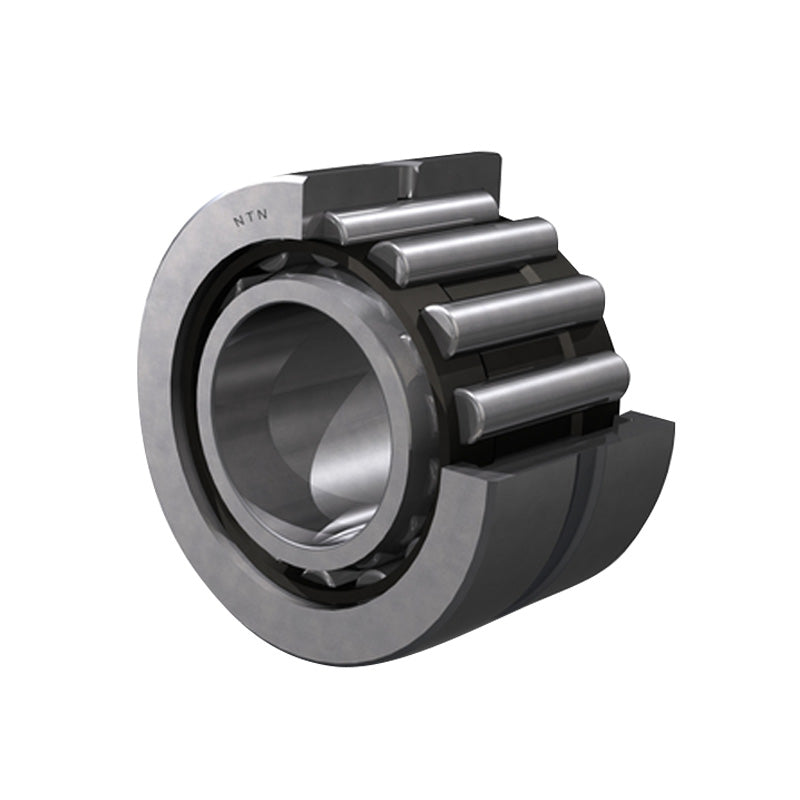

NTN NA4872 Machined Needle Roller Bearing with Shaft Sleeve 360x440x80mm - Allow 2-3 Days

NTN NA4872 Machined Needle Roller Bearing with Shaft Sleeve 360x440x80mm - Allow 2-3 Days
Regular price €4.352,16 ex VAT
Regular price Sale price €4.352,16 ex VAT
Sale Sold out

In stock

Price Break
3+ €3.538,06
4+ €3.351,84
9+ €3.165,63
19+ €2.979,42
49+ €2.904,93
99+ €2.830,45
499+ €2.458,02
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 360mm
D - Outside diameter 440mm
C - Width of bearing, drawn cup or outer ring 80mm
F - Under roller diameter 390mm
rs - Minimum fillet radius 2.1mm
s - Max axial offset 2mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 5mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 665 kN
C0r - Static load rating 2020 kN
N - Grease lubrication limit speed 650 tr/min
N - Oil lubrication limit speed 1000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 371mm
Da max - Outer ring maximum shoulder diameter 429mm
ras max - Maximum shaft & housing fillet radius 2mm
