SKU: NA4824-NTN

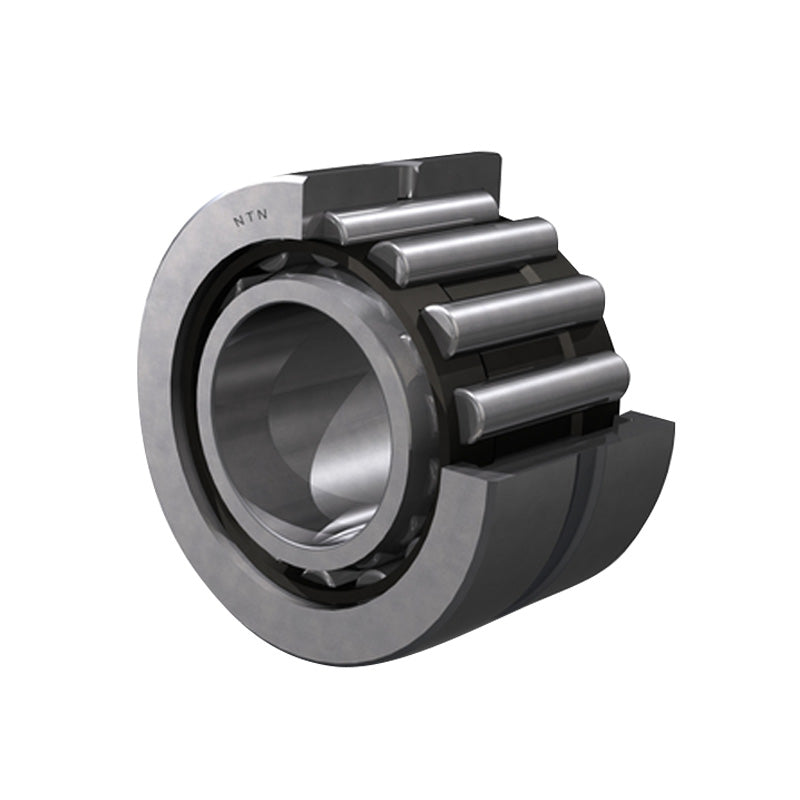

NTN NA4824 Machined Needle Roller Bearing with Shaft Sleeve 120x150x30mm - Allow 2-3 Days

NTN NA4824 Machined Needle Roller Bearing with Shaft Sleeve 120x150x30mm - Allow 2-3 Days
Regular price €207,25 ex VAT
Regular price Sale price €207,25 ex VAT
Sale Sold out

In stock

Price Break
3+ €175,58
4+ €168,48
9+ €164,94
19+ €159,62
49+ €156,07
99+ €147,20
499+ €124,15
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 120mm
D - Outside diameter 150mm
C - Width of bearing, drawn cup or outer ring 30mm
F - Under roller diameter 130mm
rs - Minimum fillet radius 1mm
s - Max axial offset 0.8mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 99.5 kN
C0r - Static load rating 233 kN
N - Grease lubrication limit speed 2100 tr/min
N - Oil lubrication limit speed 3100 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 125mm
Da max - Outer ring maximum shoulder diameter 145mm
ras max - Maximum shaft & housing fillet radius 1mm
