SKU: NA2209.2RS-SKF

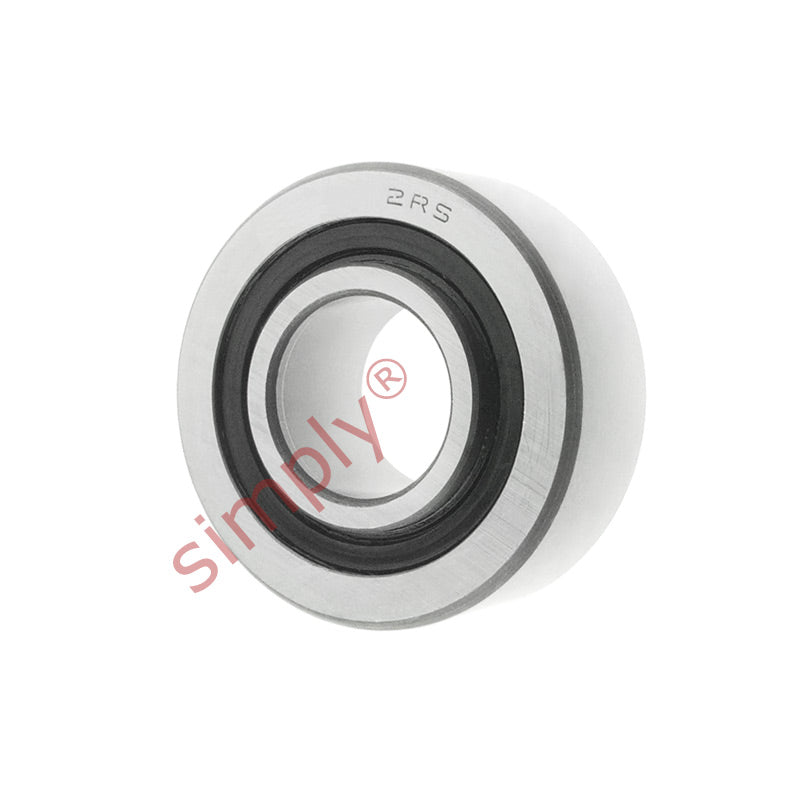

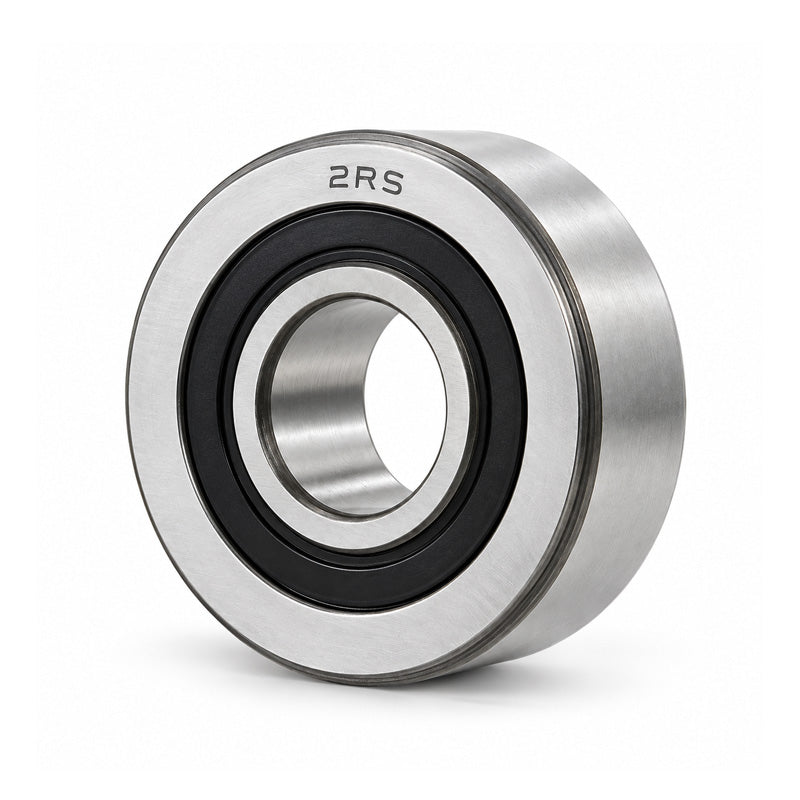

SKF NA22092RS Support Roller Without Axial Guidance With Inner Sleeve 45x85x22.7mm
SKF NA22092RS Support Roller Without Axial Guidance With Inner Sleeve 45x85x22.7mm
Out of stock
Share this product
Description
Description
Support Rollers without Axial Guidance : Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers are supplied with inner rings and are intended for arrangements where the pin or shaft can be hardened and ground. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 22.7mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| C | 22.7mm |
| B | 23mm |
| D1 | 62mm |
| F | 52mm |
| r min | 1.1mm |
| r1r2 min | 0.6mm |
| Speed rating | 800 rpm |
| Dynamic load | 27500 N |
| Basic static load | 41500 N |
| Fatigue load limit Pu | 5200 N |
| Max radial dynamic force | 39000 N |
| Max radial static force | 56000 N |
| Weight | 660 g |
