SKU: N326ECM-SKF

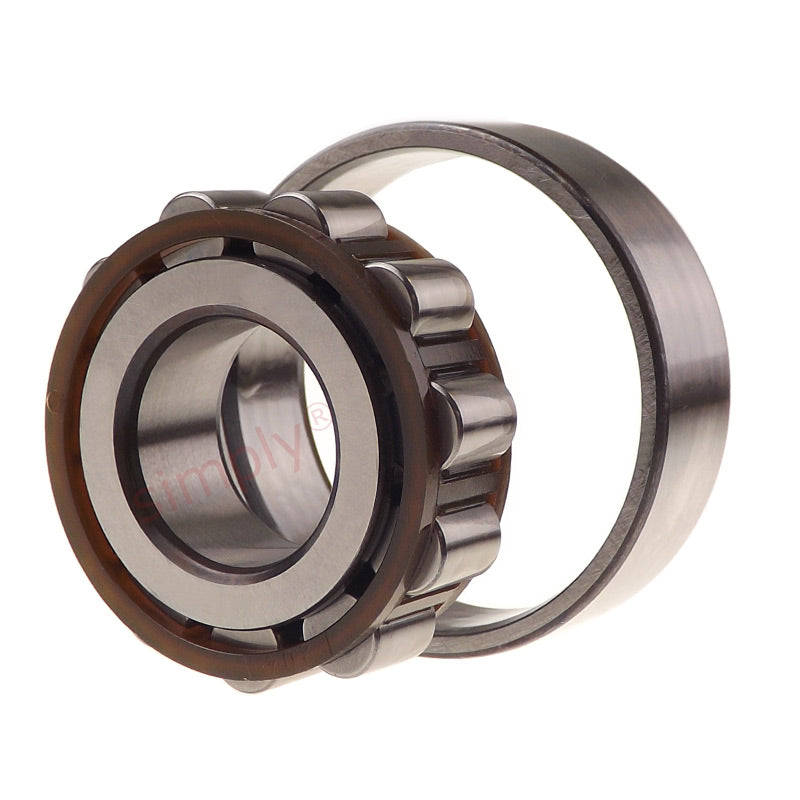

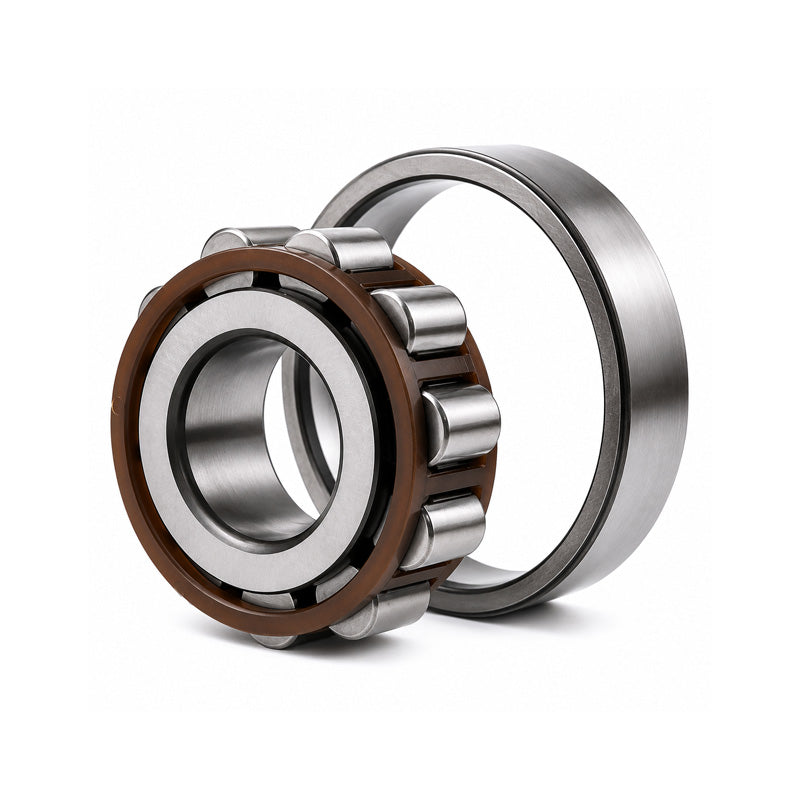

SKF N326ECM Single Row Cylindrical Roller Bearing with Brass Cage 130x280x58mm
SKF N326ECM Single Row Cylindrical Roller Bearing with Brass Cage 130x280x58mm
Regular price
€2.514,27
ex VAT
Regular price
Sale price
€2.514,27
ex VAT
In stock
Price Break
10+
€1.914,87
19+
€1.807,29
29+
€1.785,78
39+
€1.764,26
49+
€1.742,75
74+
€1.721,23
99+
€1.613,65
199+
€1.592,14
249+
€1.570,62
499+
€1.549,11
999+
€1.506,08
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 280mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 130mm |
|---|---|
| D | 280mm |
| B | 58mm |
| Dynamic load C | 720 kN |
| Static load Co | 750 kN |
| Fatigue load limit Pu | 81.5 kN |
| Reference speed | 2400 rpm |
| Limiting speed | 3000 rpm |
| Weight | 16 kg |
| Alt cage | M |
| d1 | 181mm |
| F,E | 247mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| S | 3.7mm |
| da min | 147mm |
| da max | 243mm |
| db | 251mm |
| Da max | 263mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.15 |
