SKU: N316ECP/C3-SKF

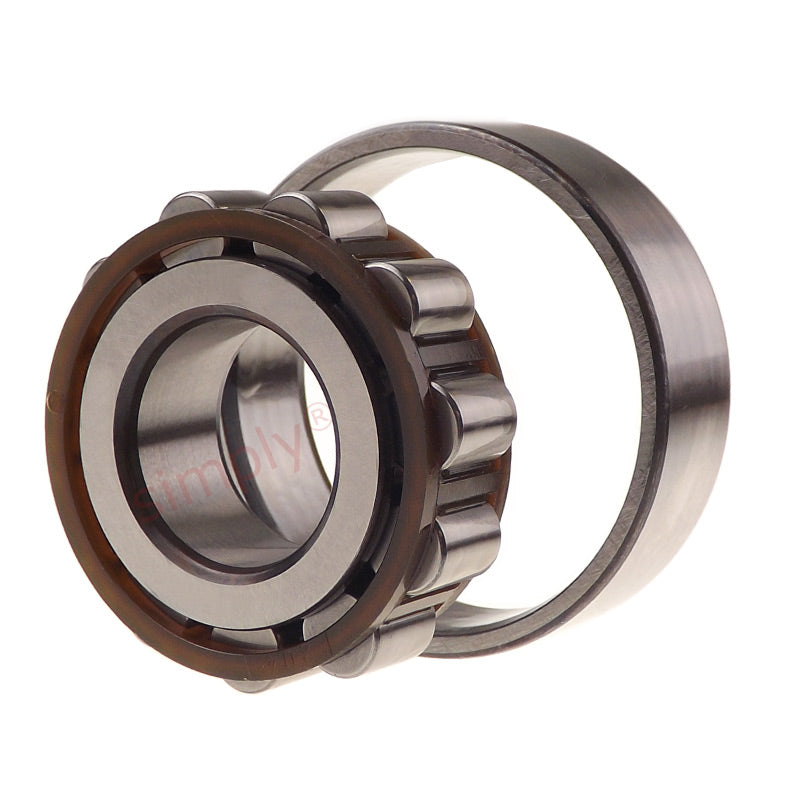

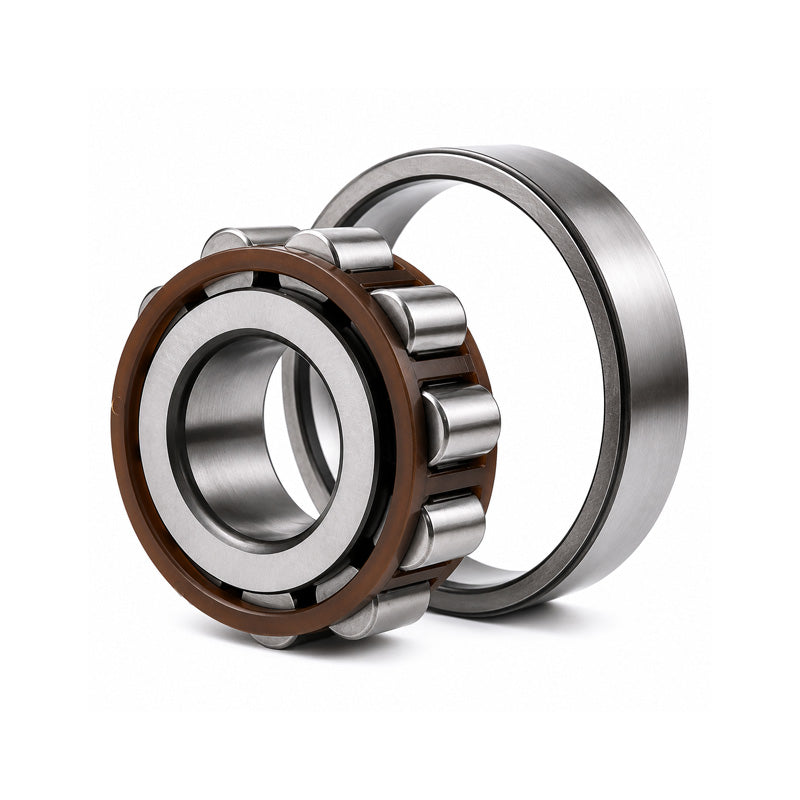

SKF N316ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 80x170x39mm

Name: SKF N316ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 80x170x39mm
Brand: SKF
SKU: N316ECP/C3-SKF
Price: 417.90 EUR
Availability: InStock

€417,90 ex VAT

Sale Sold out

In stock

Price Break

10+ €318,27

19+ €300,39

29+ €296,82

39+ €293,24

49+ €289,67

74+ €286,09

99+ €268,21

199+ €264,63

249+ €261,06

499+ €257,48

999+ €250,33

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: SKF - High Quality
Inside Diameter:: 80mm
Outside Diameter:: 170mm
Width:: 39mm
Seals / Shields:: None
Clearance:: C3

Technical

d	80mm
D	170mm
B	39mm
Dynamic load C	300 kN
Static load Co	290 kN
Fatigue load limit Pu	36 kN
Reference speed	4300 rpm
Limiting speed	5000 rpm
Weight	3.9 kg
Alt cage	M
d1	110mm
F,E	151mm
r1r2 min	2.1mm
r3r4 min	2.1mm
S	2.1mm
da min	92mm
da max	148mm
db	154mm
Da max	158mm
ra max	2mm
rb max	2mm
kr	0.15
