SKU: N1400-268SS

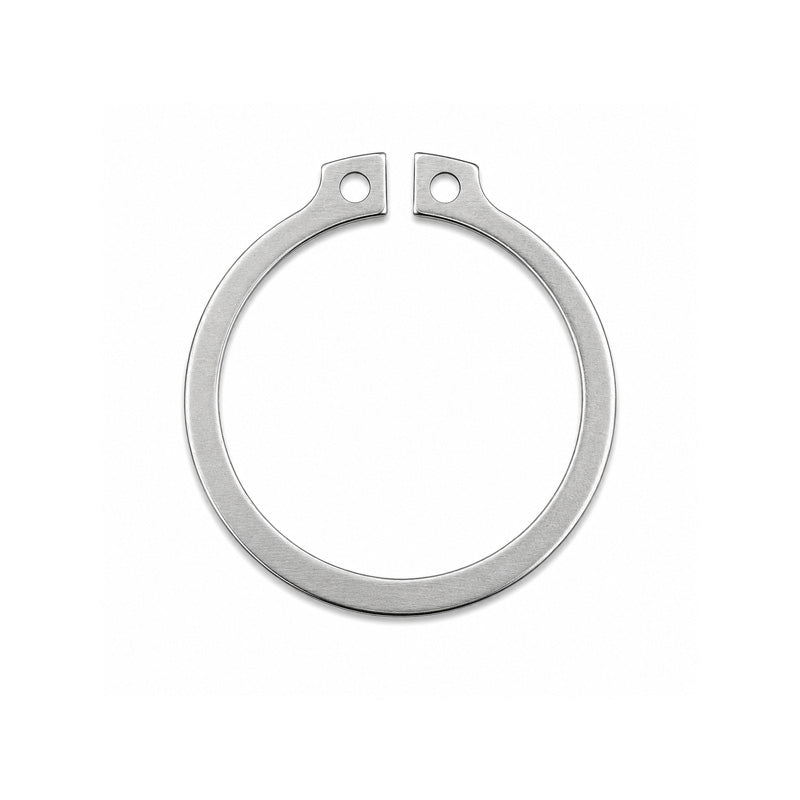

Stainless Steel External Circlip for 2.68 inch Shaft Diameter Un-Sprung Diameter 2.485 inch
Stainless Steel External Circlip for 2.68 inch Shaft Diameter Un-Sprung Diameter 2.485 inch
Regular price
€51,76
ex VAT
Regular price
Sale price
€51,76
ex VAT
Equivalent to: N1400-268SS
In stock
Price Break
5+
€43,85
10+
€42,08
20+
€41,19
50+
€39,86
100+
€38,98
500+
€36,76
1000+
€31,00
Description
Description
|
Stainless Steel Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Stainless Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable, corrosion resistant. |
Equivalent: N1400-268SS
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 63.12mm = 2.485 inch
- Material:
- Stainless Steel
- Shaft Size:
- 68.26mm = 2.688 (2-11/16) inch
- Thickness:
- 1.98mm = 0.078 (5/64) inch
- Groove Diameter:
- 64.54mm = 2.541 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 2.688 inch |
| Ring Thickness (t) | 0.078 inch |
| Thickness tolerance (t) | 0.003 inch |
| Unstressed diameter (D) | 2.485 inch |
| Unstressed diameter tolerance (D) | +0.020 / -0.030 inch |
| Lug (L) | 0.273 inch |
| Beam (b) | 0.246 inch |
| h | 0.129 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 2.541 inch |
| Groove tolerance (G) | 0.006 inch |
| Minimum Groove Width (W) | 0.086 inch |
| Groove Width Tolerance (W) | +0.005 / -0.000 inch |
| Groove depth (d) | 0.073 inch |
