SKU: MST80-RHP

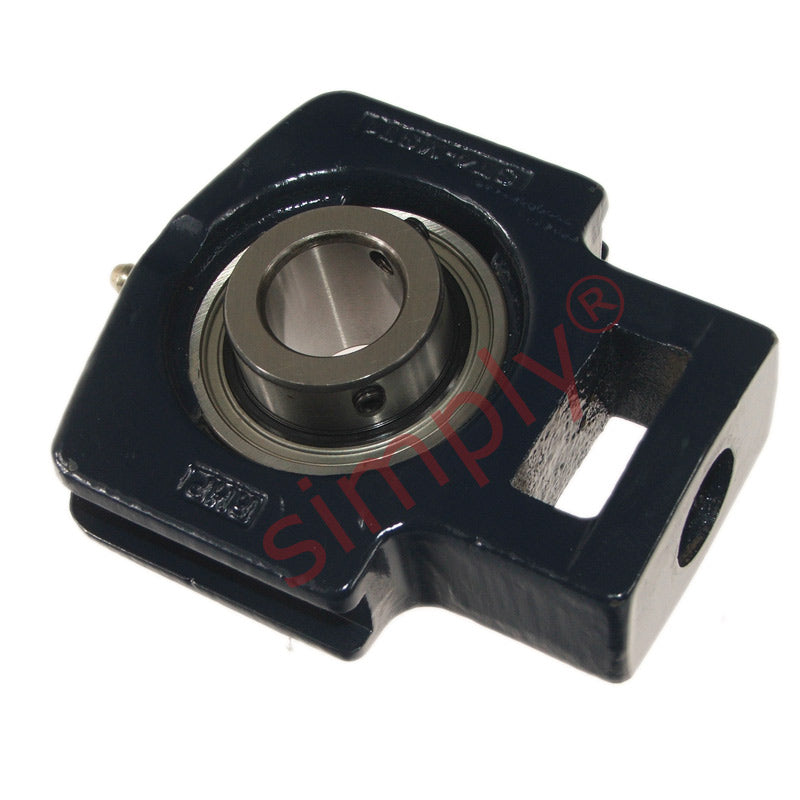

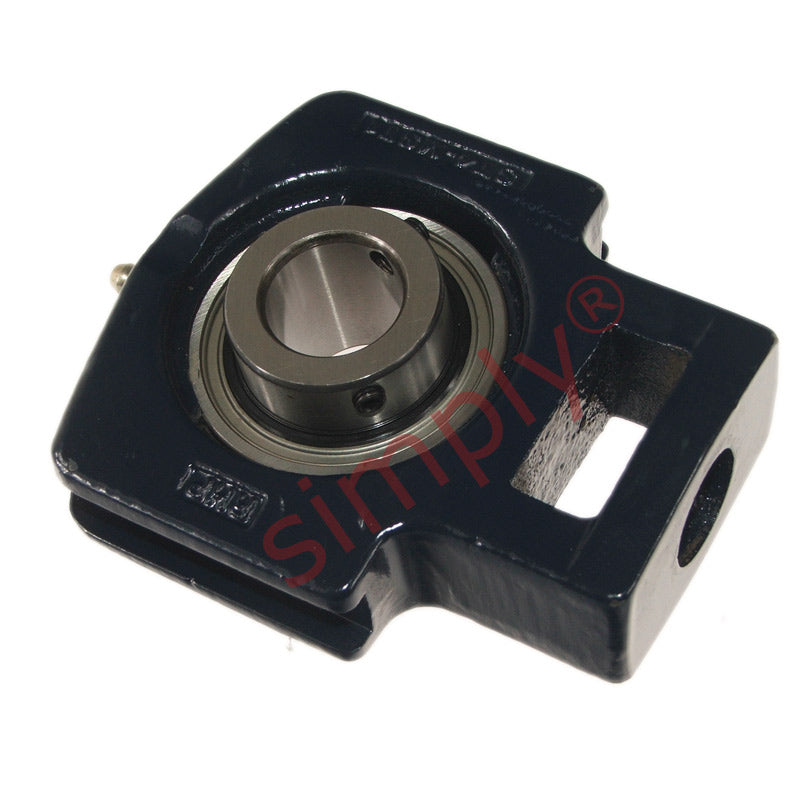

RHP MST80 Cast Iron Take Up Unit and 80mm Bore Insert
RHP MST80 Cast Iron Take Up Unit and 80mm Bore Insert
Regular price
€680,26
ex VAT
Regular price
Sale price
€680,26
ex VAT
In stock
Price Break
10+
€518,09
20+
€488,98
30+
€483,16
40+
€477,34
50+
€471,52
75+
€465,70
100+
€436,59
200+
€430,77
250+
€424,95
500+
€419,13
1000+
€407,49
Share this product
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 80mm
- Style:
- MST
Technical
Technical

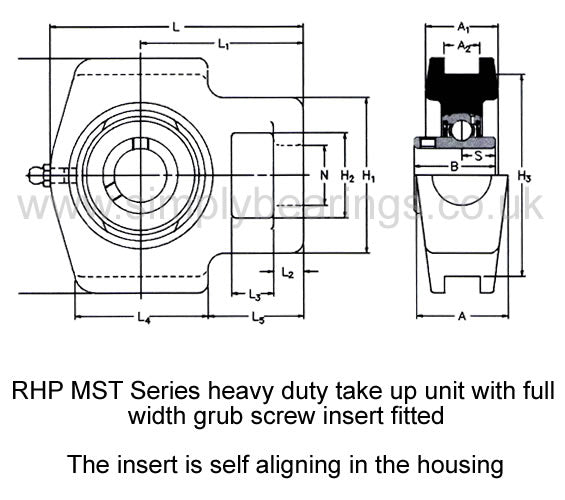

| Bore | 80mm |
|---|---|
| L | 260.5mm |
| L1 | 162mm |
| L2 | 28.5mm |
| L3 | 38mm |
| L4 | 140mm |
| L5 | 90.5mm |
| H | 198.5mm |
| H1 | 124mm |
| H2 | 73mm |
| H3 | 173mm |
| N | 47.5mm |
| A | 79.5mm |
| A1 | 68.5mm |
| A2 | 46.05mm |
| B | 85.72mm |
| B5 | -mm |
| s | 34.18mm |
| d1 | 106.02mm |
| d4 | -mm |
| Dynamic load | 83000 N |
| Static load | 64000 N |
| Rec max speed | 2000 rpm |
| Weight | 13.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1085-80G+insonly">1085-80G Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
