SKU: MST35-RHP

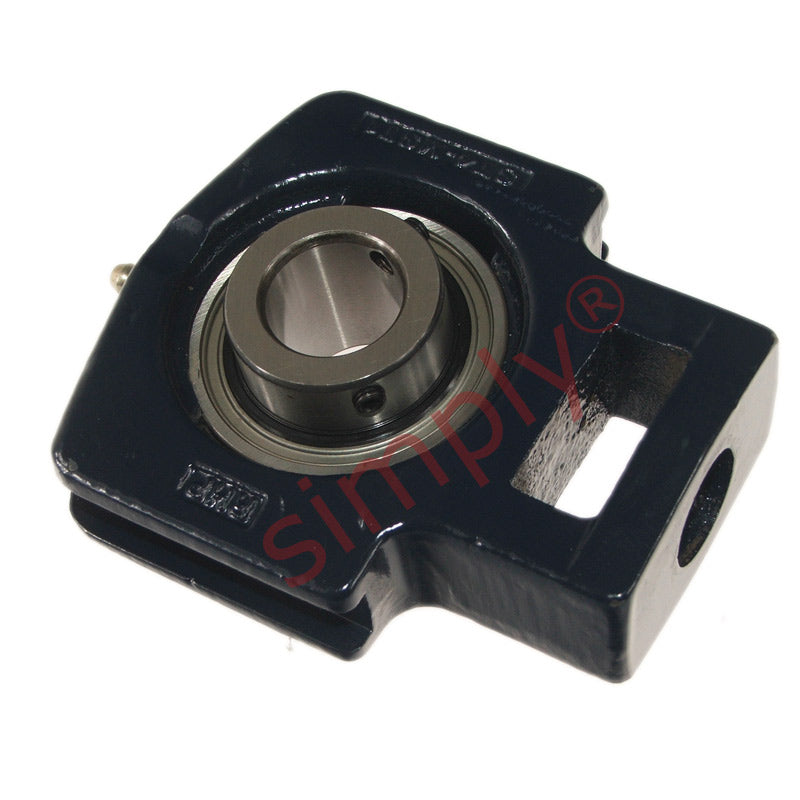

RHP MST35 Cast Iron Take Up Unit and 35mm Bore Insert
RHP MST35 Cast Iron Take Up Unit and 35mm Bore Insert
Regular price
€125,28
ex VAT
Regular price
Sale price
€125,28
ex VAT
In stock
Price Break
10+
€111,50
19+
€105,24
29+
€103,98
39+
€102,73
49+
€101,48
74+
€100,22
99+
€93,96
199+
€92,71
249+
€91,45
499+
€90,20
999+
€87,70
Couldn't load pickup availability
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- MST
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 143.5mm |
| L1 | 89.2mm |
| L2 | 15.5mm |
| L3 | 20.5mm |
| L4 | 81.5mm |
| L5 | 50.5mm |
| H | 118mm |
| H1 | 82.5mm |
| H2 | 49.5mm |
| H3 | 101mm |
| N | 29mm |
| A | 49.5mm |
| A1 | 37mm |
| A2 | 17.5mm |
| B | 49.23mm |
| B5 | -mm |
| s | 19.1mm |
| d1 | 52.7mm |
| d4 | -mm |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-35G+insonly">1040-35G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
