SKU: MST1055K-RHP

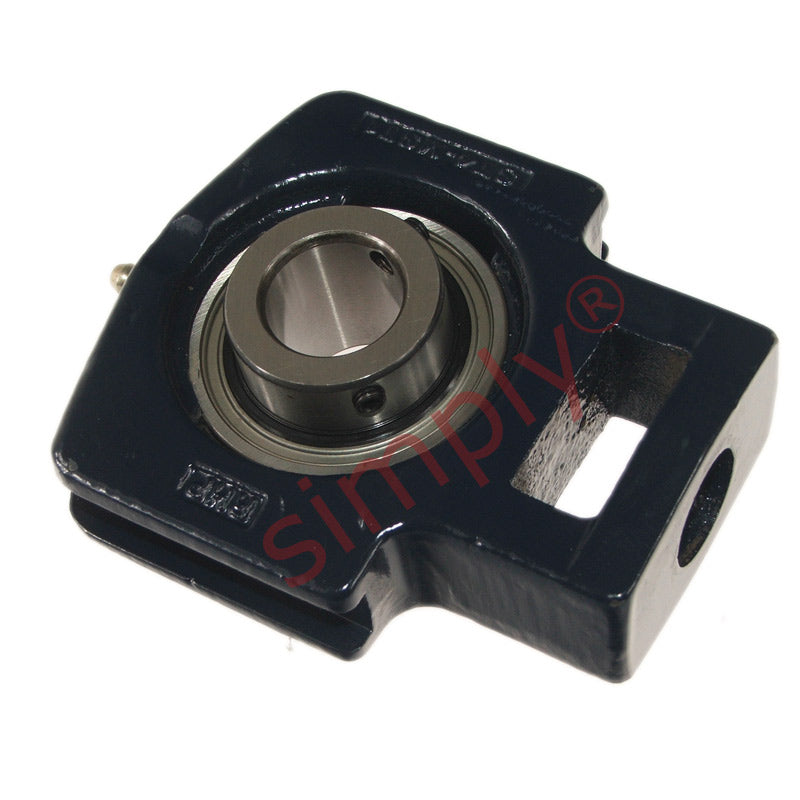

RHP MST1055K Cast Iron Take Up Unit and 50mm Bore Insert
RHP MST1055K Cast Iron Take Up Unit and 50mm Bore Insert
Regular price
€171,57
ex VAT
Regular price
Sale price
€171,57
ex VAT
In stock
Price Break
10+
€130,67
20+
€123,33
30+
€121,86
40+
€120,40
50+
€118,93
75+
€117,46
100+
€110,12
200+
€108,65
250+
€107,18
500+
€105,71
1000+
€102,78
Share this product
Description
Description
|
RHP MST K Series Cast Iron Take Up Housing Units: Take up type cast iron bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- MST
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 182mm |
| L1 | 114mm |
| L2 | 19mm |
| L3 | 32mm |
| L4 | 97.5mm |
| L5 | 70mm |
| H | 146mm |
| H1 | 101mm |
| H2 | 64mm |
| H3 | 130mm |
| N | 35mm |
| A | 63.5mm |
| A1 | 46.5mm |
| A2 | 27mm |
| B | -mm |
| B5 | 45mm |
| s | -mm |
| d1 | -mm |
| d4 | 75mm |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055K+insonly">1055K Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
