SKU: MSC75-RHP

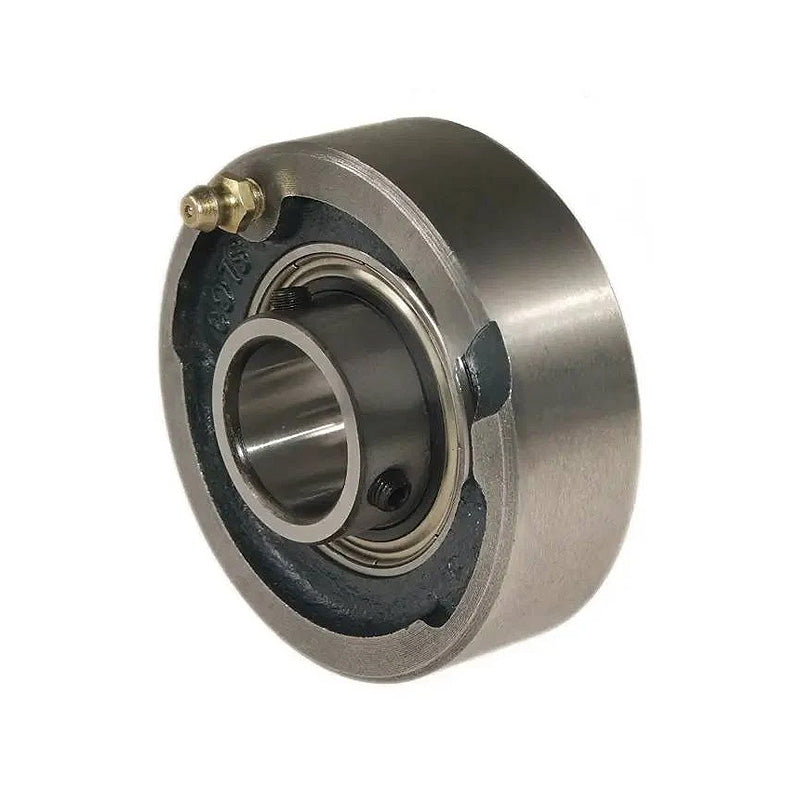

RHP MSC75 Cast Iron Cartridge Unit with 75mm Bore Insert 168.3mm Outside Diameter
RHP MSC75 Cast Iron Cartridge Unit with 75mm Bore Insert 168.3mm Outside Diameter
Regular price
€274,65
ex VAT
Regular price
Sale price
€274,65
ex VAT
In stock
Price Break
10+
€209,18
20+
€197,43
30+
€195,08
40+
€192,73
50+
€190,38
75+
€188,03
100+
€176,27
200+
€173,92
250+
€171,57
500+
€169,22
1000+
€164,52
Share this product
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 168.3mm
- Style:
- MSC
Technical
Technical
| Bore | 75mm |
|---|---|
| L | 168.3mm |
| A | 50.8mm |
| A1 | 69.8mm |
| B | 77.77mm |
| s | 33.37mm |
| d1 | 92 |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rex max speed | 2300 rpm |
| Weight | 6.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-75G+insonly">1075-75G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
