SKU: MSC2.1/4-RHP

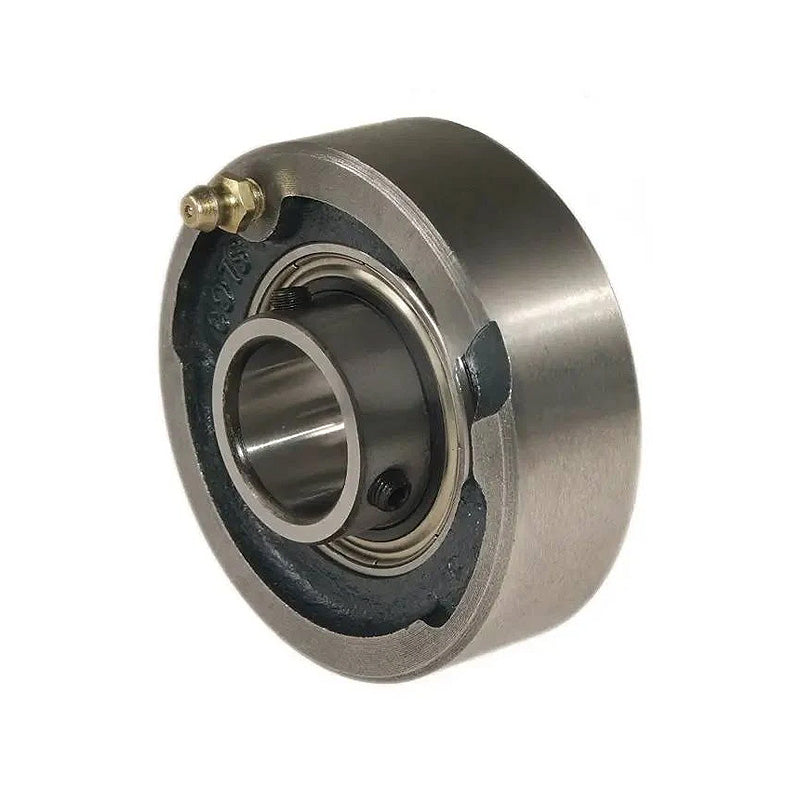

RHP MSC2-1/4 Cast Iron Cartridge Unit with 2-1/4 inch Bore Insert 149.25mm Outside Diameter
RHP MSC2-1/4 Cast Iron Cartridge Unit with 2-1/4 inch Bore Insert 149.25mm Outside Diameter
Regular price
€180,12
ex VAT
Regular price
Sale price
€180,12
ex VAT
In stock
Price Break
10+
€137,18
20+
€129,47
30+
€127,93
40+
€126,39
50+
€124,85
75+
€123,31
100+
€115,60
200+
€114,06
250+
€112,52
500+
€110,98
1000+
€107,89
Share this product
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Outside Diameter:
- 149.25mm
- Style:
- MSC
Technical
Technical
| Bore | 2-1/4 inch |
|---|---|
| L | 5.876 inch |
| A | 1.625 inch |
| A1 | 2.374 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| d1 | 2.966 |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rex max speed | 2800 rpm |
| Weight | 4.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-1/4G+insonly">1060-2-1/4G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
