SKU: MSC1.11/16-RHP

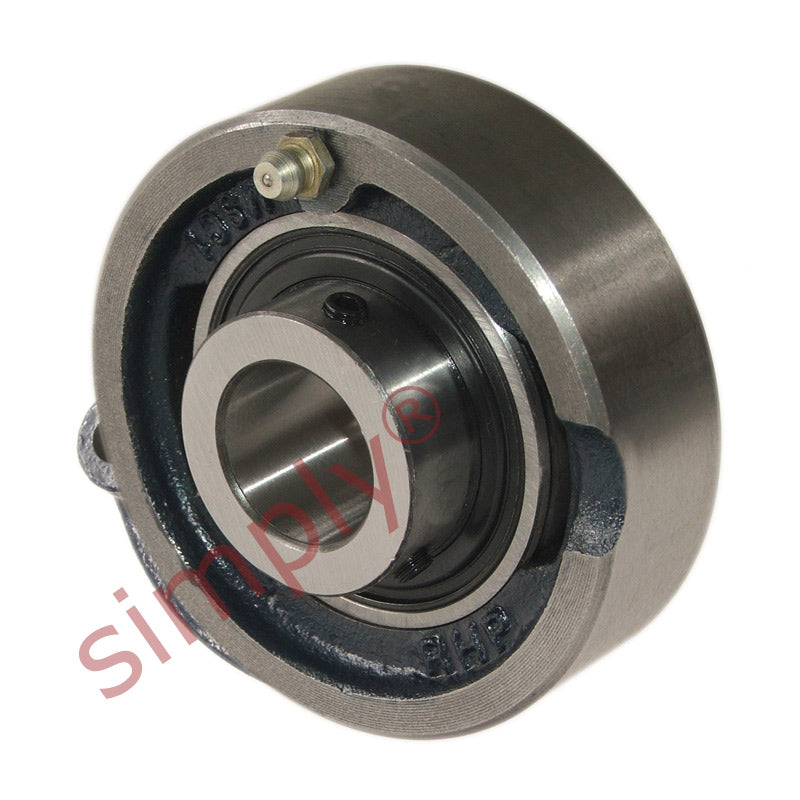

RHP MSC1-11/16 Cast Iron Cartridge Unit with 1-11/16 inch Bore Insert 115.91mm Outside Diameter
RHP MSC1-11/16 Cast Iron Cartridge Unit with 1-11/16 inch Bore Insert 115.91mm Outside Diameter
Regular price
€147,55
ex VAT
Regular price
Sale price
€147,55
ex VAT
In stock
Price Break
10+
€131,32
19+
€123,94
29+
€122,47
39+
€120,99
49+
€119,52
74+
€118,04
99+
€110,66
199+
€109,19
249+
€107,71
499+
€106,24
999+
€103,29
Couldn't load pickup availability
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Outside Diameter:
- 115.91mm
- Style:
- MSC

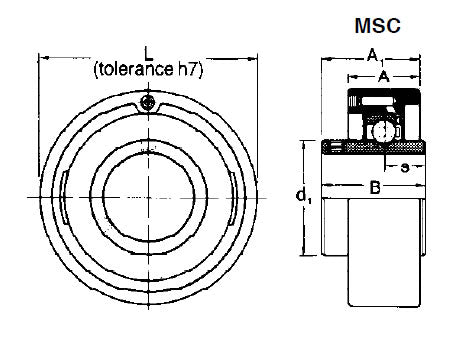

Technical
Technical
| Bore | 1-11/16 inch |
|---|---|
| L | 4.5635 inch |
| A | 1.469 inch |
| A1 | 2.015 inch |
| B | 2.031 inch |
| s | 0.752 inch |
| d1 | 2.449 |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rex max speed | 3400 rpm |
| Weight | 2.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-1-11/16G+insonly">1050-1-11/16G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
